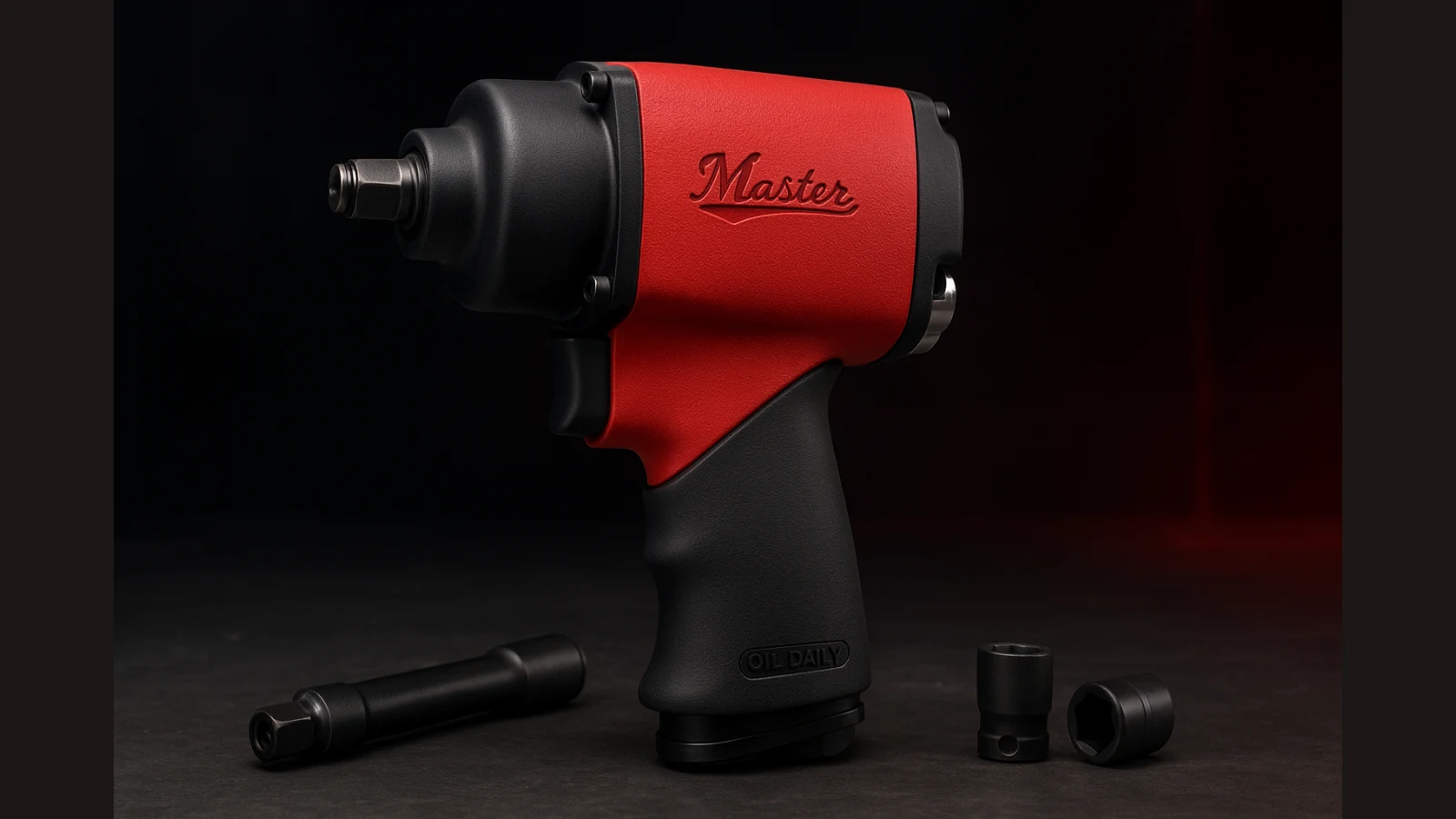

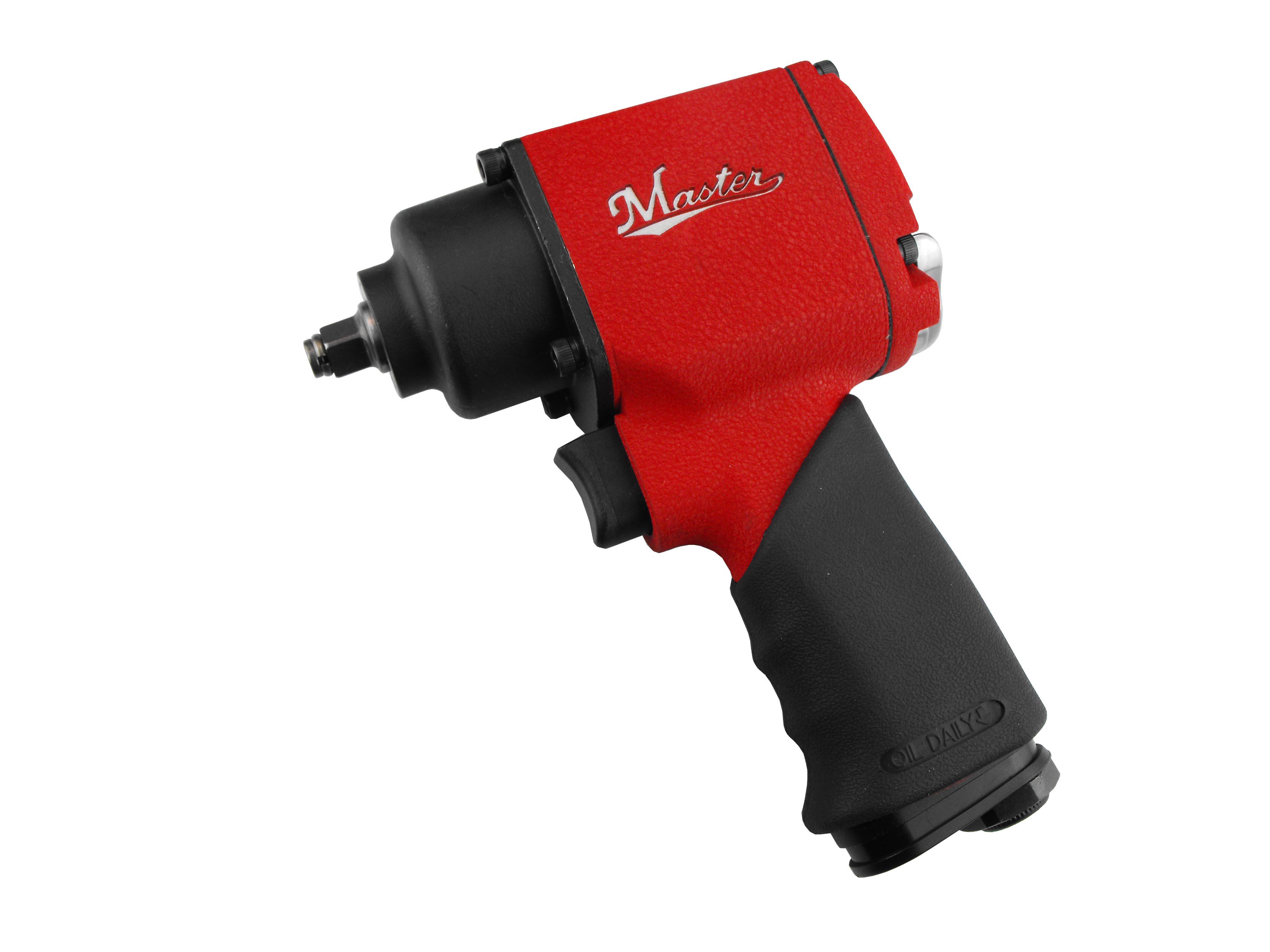

1/2" Impact Wrench Overview
This impact wrench is engineered for precision and durability in heavy-duty industrial applications. Featuring a 1/2" square drive and twin hammer design, it provides balanced, instantaneous impacts for efficient fastening and loosening tasks. Its compact size and lightweight construction ensure ease of use in factory settings.
The tool operates at a free speed of 10,000 rpm, supported by a pneumatic power source optimized for consistent performance. Noise levels are reduced through quiet technology, enhancing operator comfort during extended use.
| Item No. | 68230 |
|---|---|
| Free Speed / RPM | 10000 |
| Air Consumption / SCFM | 28 |
| Air Consumption / CFM | 3.934 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 5.472440945 |
| Overall Length / mm | 139 |
| Weight / lb | 3.52 |
| Weight / kg | 1.6 |
| Exhaust | Side |
| Noise / dBA | 87 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.31 |
| kW | 0.2325 |
| Square Drive / inch | 1/2 |
| Max Torque / ft-lb | 550 |
| Max Torque / Nm | 745.8 |
| 5 Sec Torque / ft-lb | 500 |
| 5 Sec Torque / Nm | 678 |
| Impact Type | twin hammer |
| Impact Per Minute | 1500 |
Key Features
- MASTER PALM BALANCE WEIGHT SERIES design for optimal handling
- 1/2" square drive with twin hammer impact mechanism
- Free speed of 10,000 rpm for high-speed operation
- Durable construction suitable for heavy-duty industrial tasks
- Reduced noise output with quiet technology
- Lightweight and compact for extended use and operator comfort
Applications
Applications
- Factory assembly lines requiring reliable fastening tools
- Maintenance and repair operations in industrial environments
- Heavy-duty tasks demanding high torque and durability
- Situations requiring vibration resistance and ergonomic grip
- Environments where safety-driven reverse switch control is critical
