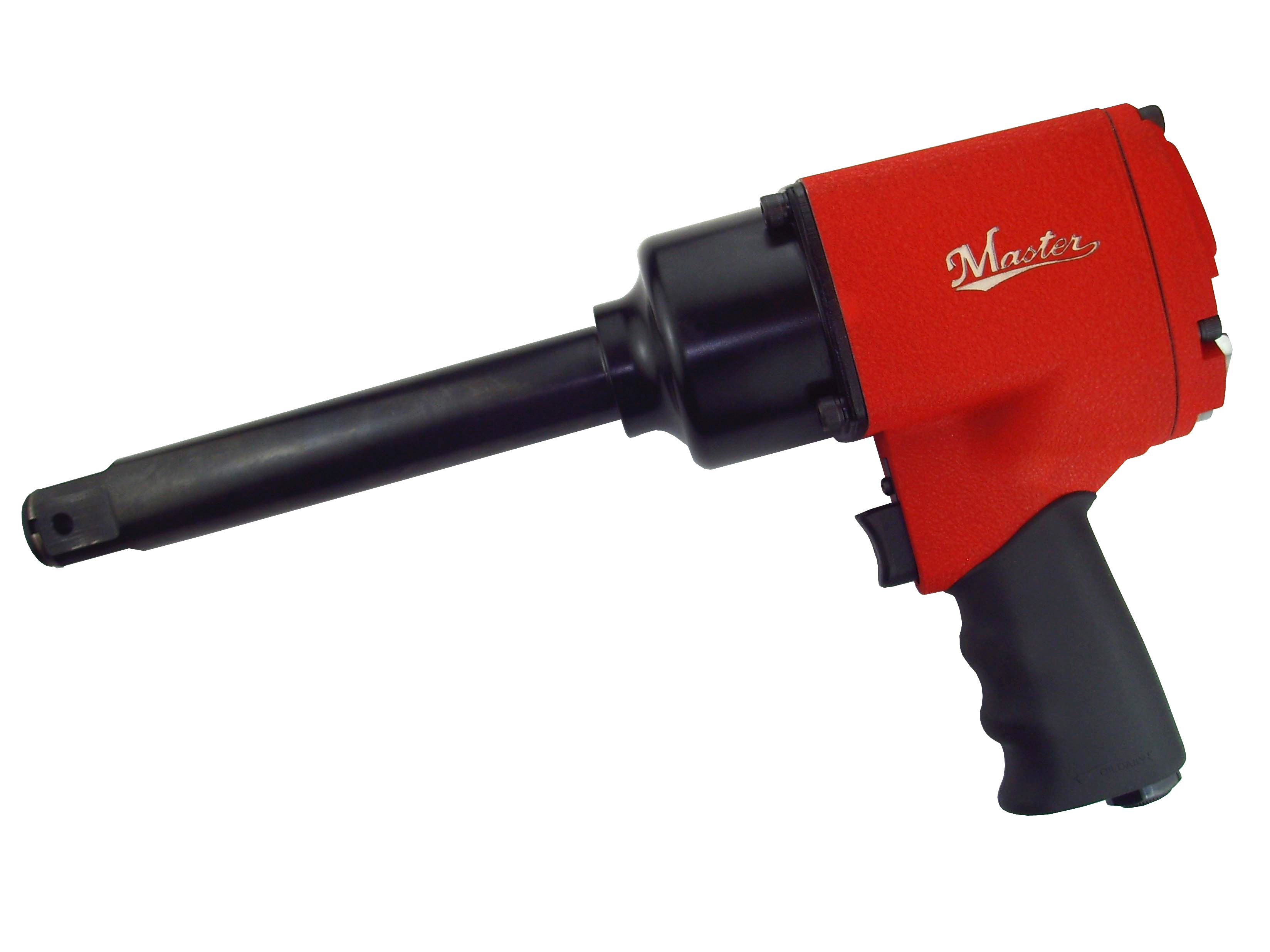

1" Impact Wrench (Long Anvil) Overview
This MasterPalm industrial series impact wrench features a 1" square drive and a twin hammer design, providing balanced and instantaneous blows for heavy-duty applications. The long anvil design allows access to deeper spaces, enhancing operational flexibility in factory settings. Equipped with a rubber jacket grip and feather trigger, it ensures firm handling and easy control during use.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 6000 RPM |
| Air Consumption | 7.025 CFM (18.408 m³/min) |
| Air Pressure | 90 PSIA (6.2055 bar) |
| Overall Length | 367 mm (14.45 in) |
| Weight | 20.46 lb (9.3 kg) |
| Noise Level | 94 dBA |
| Air Hose Size | 3/8 in (9.525 mm) |
| Horsepower | 0.53 HP |
| Power | 0.3975 kW |
| Square Drive | 1 in (25.4 mm) |
| Max Torque | 1200 ft-lb (1627.2 Nm) |
| 5 Sec Torque | 1050 ft-lb (1423.8 Nm) |
| Impact Type | Twin hammer |
| Impacts Per Minute | 1000 IPM |
| Grip Length | 110 mm (4.33 in) |
| Impact Length | 68 mm (2.68 in) |
| Impact Wrench Length | 178 mm (7.01 in) |
| Item No. | 68280L |
|---|---|
| Free Speed / RPM | 6000 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 14.4488189 |
| Overall Length / mm | 367 |
| Weight / lb | 20.46 |
| Weight / kg | 9.3 |
| Exhaust | Side |
| Noise / dBA | 94 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.53 |
| kW | 0.3975 |
| Square Drive / inch | 1 |
| Max Torque / ft-lb | 1200 |
| Max Torque / Nm | 1627.2 |
| 5 Sec Torque / ft-lb | 1050 |
| 5 Sec Torque / Nm | 1423.8 |
| Impact Type | twin hammer |
| Impact Per Minute | 1000 |
Key Features
MASTER PALM INDUSTRIAL SERIES IMPACT WRENCH with 1" square drive and twin hammer mechanism delivers balanced, powerful impacts at a free speed of 6000 RPM. The long anvil design enables access to deeper spaces in industrial tasks. Rubber jacket grip enhances holding strength with finger-molded curves. Feather trigger design allows easy and precise control during operation.
Applications
Applications
The twin hammer design is engineered for durability and optimal performance in heavy-duty industrial environments, delivering instantaneous balanced blows. The long anvil design facilitates reach into confined or deep spaces for maintenance and assembly tasks. The rubber jacket grip ensures secure handling, while the feather trigger provides responsive power control, making it suitable for factory and industrial tool applications.
