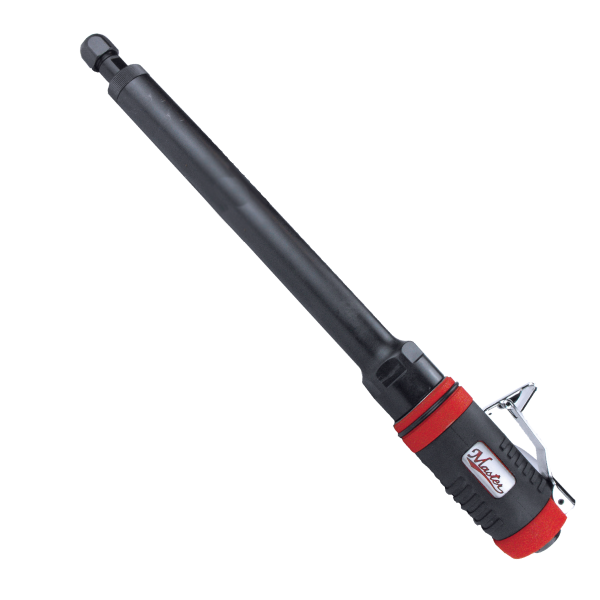

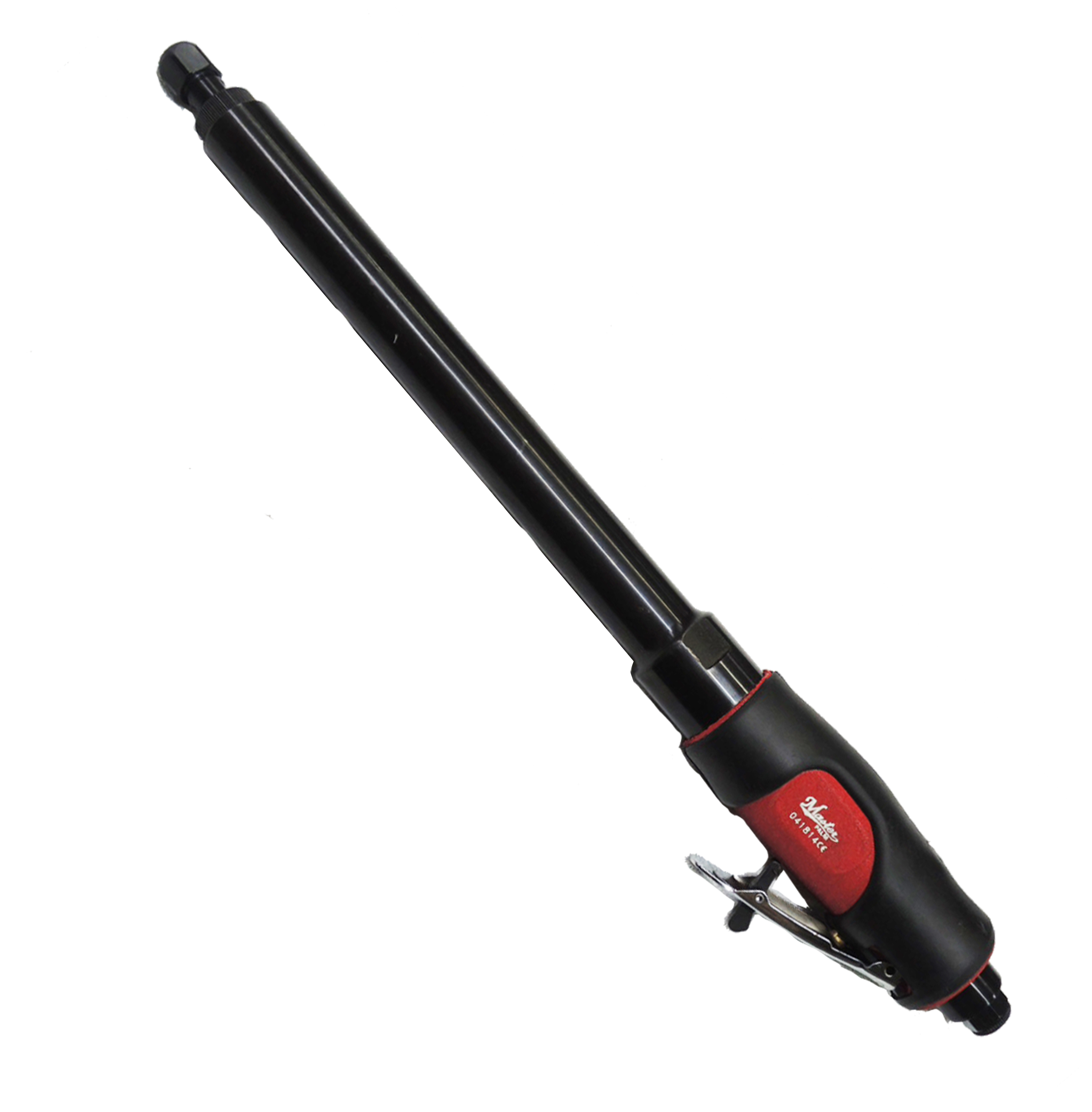

Industrial Grade Straight Die Grinder
The 11" Extensive Shaft Straight Die Grinder is designed for heavy-duty factory environments, combining compact power with durability. It features a free speed of 17,000 rpm, ensuring efficient material removal and precision in demanding tasks. The tool supports an optional muffler (MSA-006A) to reduce operational noise, enhancing workplace safety and comfort.
Its rear exhaust design and multiple collet size options (3 mm, 6 mm, 8 mm) provide versatility for various industrial applications. The grinder operates at an air pressure of approximately 90 PSIA and consumes air efficiently, making it suitable for continuous factory use.
| Item No. | 38370 |
|---|---|
| Free Speed / RPM | 17000 |
| Air Consumption / SCFM | 19 |
| Air Consumption / CFM | 2.6695 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 13.74015748 |
| Overall Length / mm | 349 |
| Weight / lb | 3.96 |
| Weight / kg | 1.8 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
| Collet Size / inch | 1/4 |
| Collet Size / mm | 8 |
Key Features
- Free Speed: 17,000 rpm for high-performance grinding
- Optional Muffler MSA-006A for noise reduction
- Rear exhaust design for operator comfort
- Multiple collet sizes: 3 mm, 6 mm, 8 mm, and 1/4 inch
- Compact and durable construction for industrial environments
- Air pressure operation at approximately 90 PSIA
Applications
Applications
Designed for precision grinding and finishing in industrial settings, the 11" Extensive Shaft Straight Die Grinder is ideal for use in metal fabrication, automotive manufacturing, and maintenance operations. Its compact power and durability make it suitable for tasks requiring extended reach and consistent performance in factory environments.
