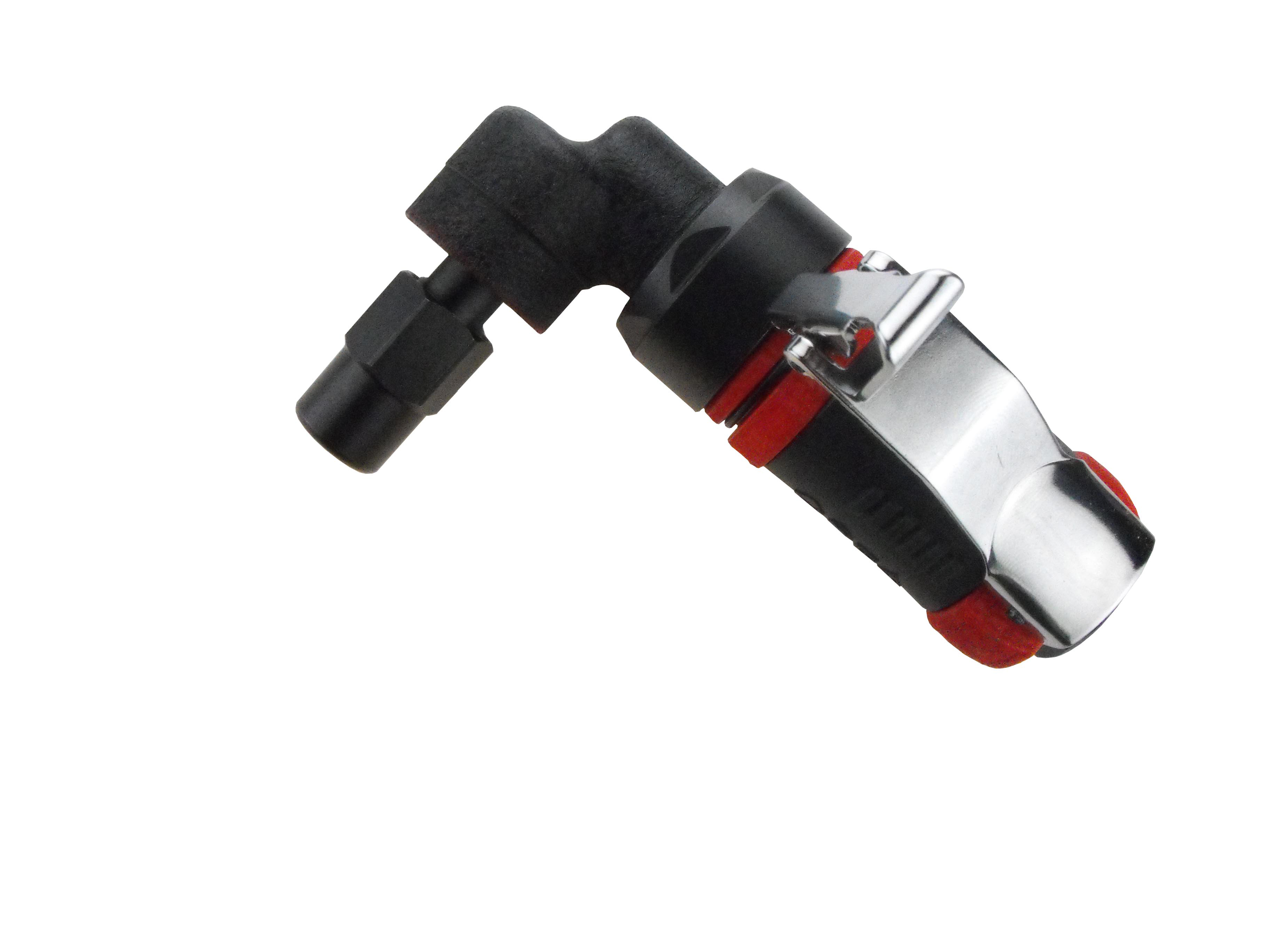

Right Angle Die Grinder Overview
The Right Angle Die Grinder is engineered for factory use, featuring a low profile design within the Palm Mini series. It delivers a free speed of 19,000 rpm, ensuring compact power and durability for demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 16,500 RPM |
| Air Consumption | 12 SCFM / 1.86 CFM / 265.0752 m³/hr / 4.41792 m³/min |
| Air Pressure | 5.6248 kg/cm² / 80 PSIA / 5.52 bar / 551.6 kPa |
| Angle Height | 0.94 in / 24 mm |
| Overall Length | 4.33 in / 110 mm |
| Weight | 0.34 kg / 0.75 lb |
| Exhaust | Rear |
| Noise Level | 82 dBA |
| Air Hose Size | 3/16 in / 4.76 mm |
| Horsepower | 0.25 HP / 0.19 kW |
| Collet Size | 1/4 in, 1/8 in, 6 mm, 3 mm |
| Item No. | 38030 |
|---|---|
| Free Speed / RPM | 16500 |
| Air Consumption / SCFM | 12 |
| Air Consumption / CFM | 1.86 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.52 |
| Angle Height / inch | 0.94 |
| Angle Height / mm | 24 |
| Overall Length / inch | 4.33 |
| Overall Length / mm | 110 |
| Weight / lb | 0.75 |
| Weight / kg | 0.34 |
| Exhaust | Rear |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.76 |
| Horsepower | 0.25 |
| kW | 0.19 |
| Collet Size / inch | 1/4 |
Key Features
- Low profile angle palm mini series design for compact industrial use
- Free speed of 19,000 rpm for efficient grinding performance
- Optional muffler MSA-005A available for noise reduction
- Durable construction suitable for factory environments
- Rear exhaust design to direct airflow away from operator
Applications
Applications
The Right Angle Die Grinder is ideal for precision grinding, deburring, and finishing tasks in industrial settings. Its compact size and high-speed operation make it suitable for confined spaces and detailed work on metal, plastic, and composite materials in manufacturing and maintenance operations.
