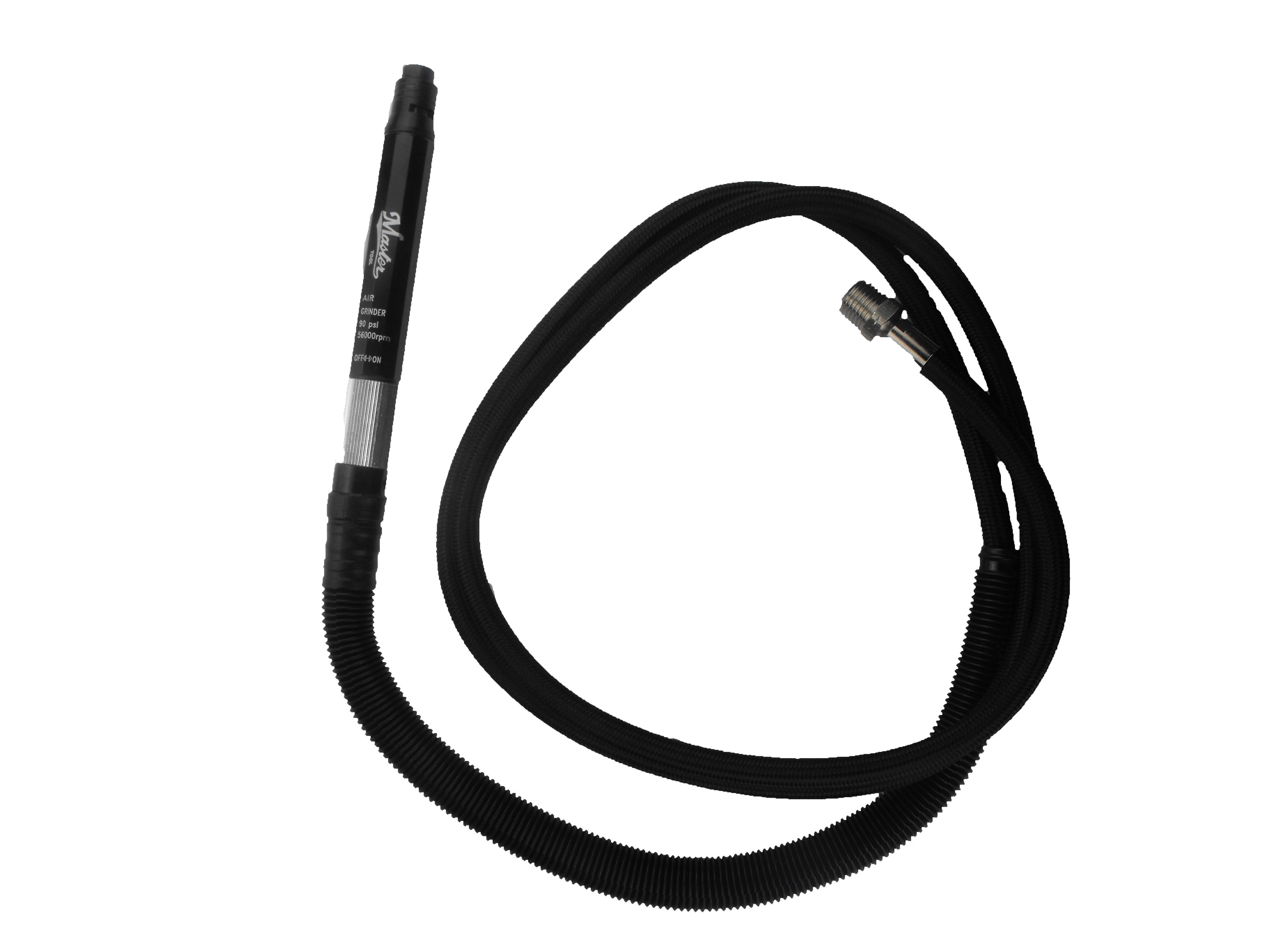

Air Micro Die Grinder Overview
The Air Micro Die Grinder is engineered for precision and durability in demanding industrial environments. Featuring a compact design and a high free speed of 56,000 rpm, it delivers reliable performance for detailed grinding tasks. Its pneumatic power ensures consistent operation suitable for factory use and global distribution.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 56,000 rpm |
| Air Consumption | 9 SCFM / 1.2645 CFM / 198.8064 m³/hr / 3.31344 m³/min |
| Air Pressure | 6.3279 kg/cm² / 90 PSIA / 6.2055 bar / 620.55 kPa |
| Overall Length | 130 mm / 5.118 inches |
| Weight | 0.21 kg / 0.462 lb |
| Exhaust | Rear |
| Noise Level | 80 dBA |
| Air Hose Size | 3/16 in / 4.7625 mm |
| Horsepower | 0.1 HP / 0.075 kW |
| Collet Size | 1/8 in / 3 mm |
| Item No. | 31880 |
|---|---|
| Free Speed / RPM | 56000 |
| Air Consumption / SCFM | 9 |
| Air Consumption / CFM | 1.2645 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 5.118110236 |
| Overall Length / mm | 130 |
| Weight / lb | 0.462 |
| Weight / kg | 0.21 |
| Exhaust | Rear |
| Noise / dBA | 80 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.1 |
| kW | 0.075 |
Key Features
Micro Series Straight Micro Die Grinder with a free speed of 56,000 rpm ensures high precision and compact power. Designed for durability and consistent performance in industrial settings, it supports rear exhaust for operator comfort and features a lightweight build for ease of use.
Applications
Applications
The Air Micro Die Grinder is ideal for detailed grinding and finishing tasks in industrial manufacturing and maintenance. Its compact size and high speed make it suitable for precision work in tight spaces, supporting various factory-level operations requiring reliable pneumatic tools.
