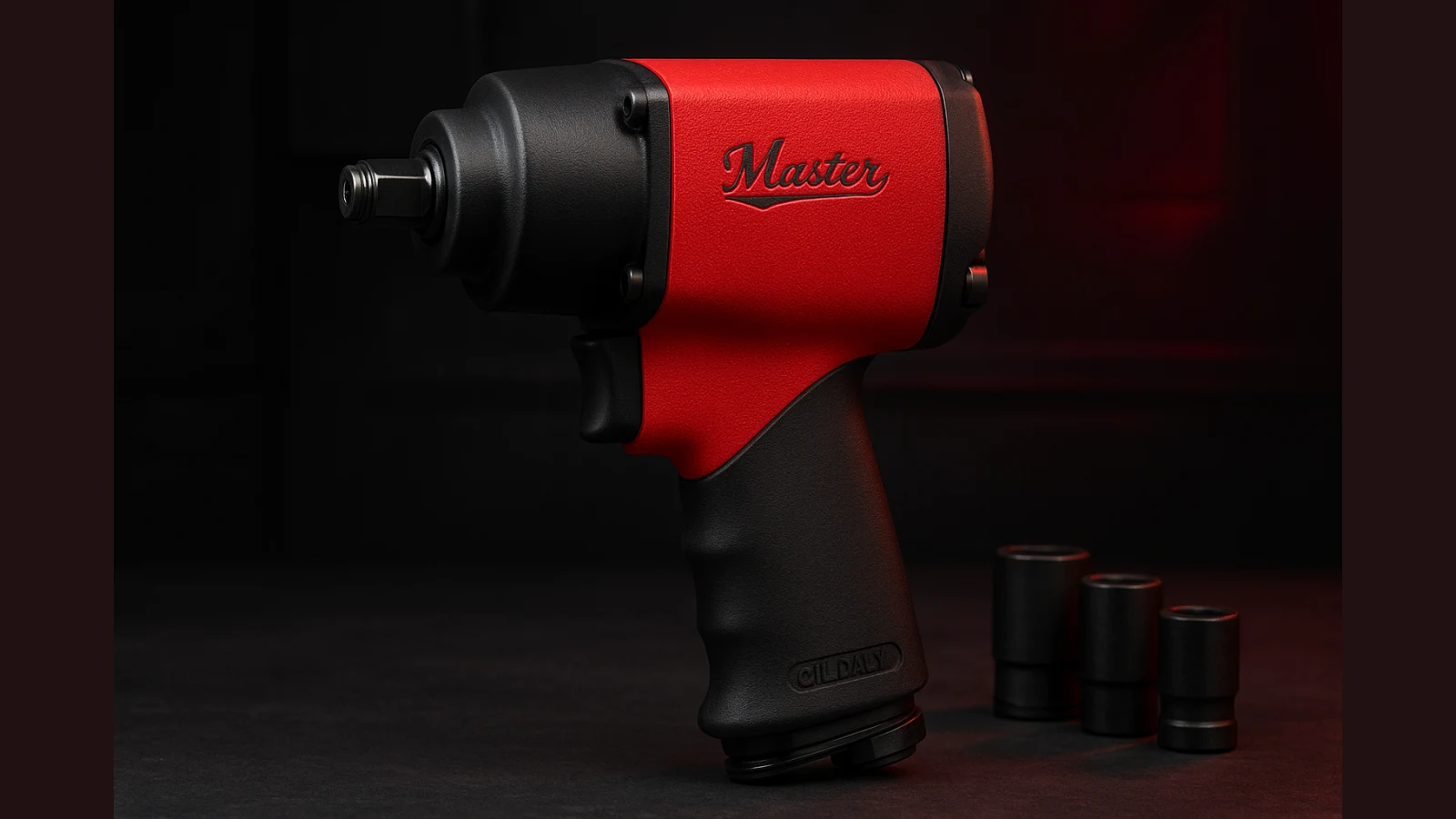

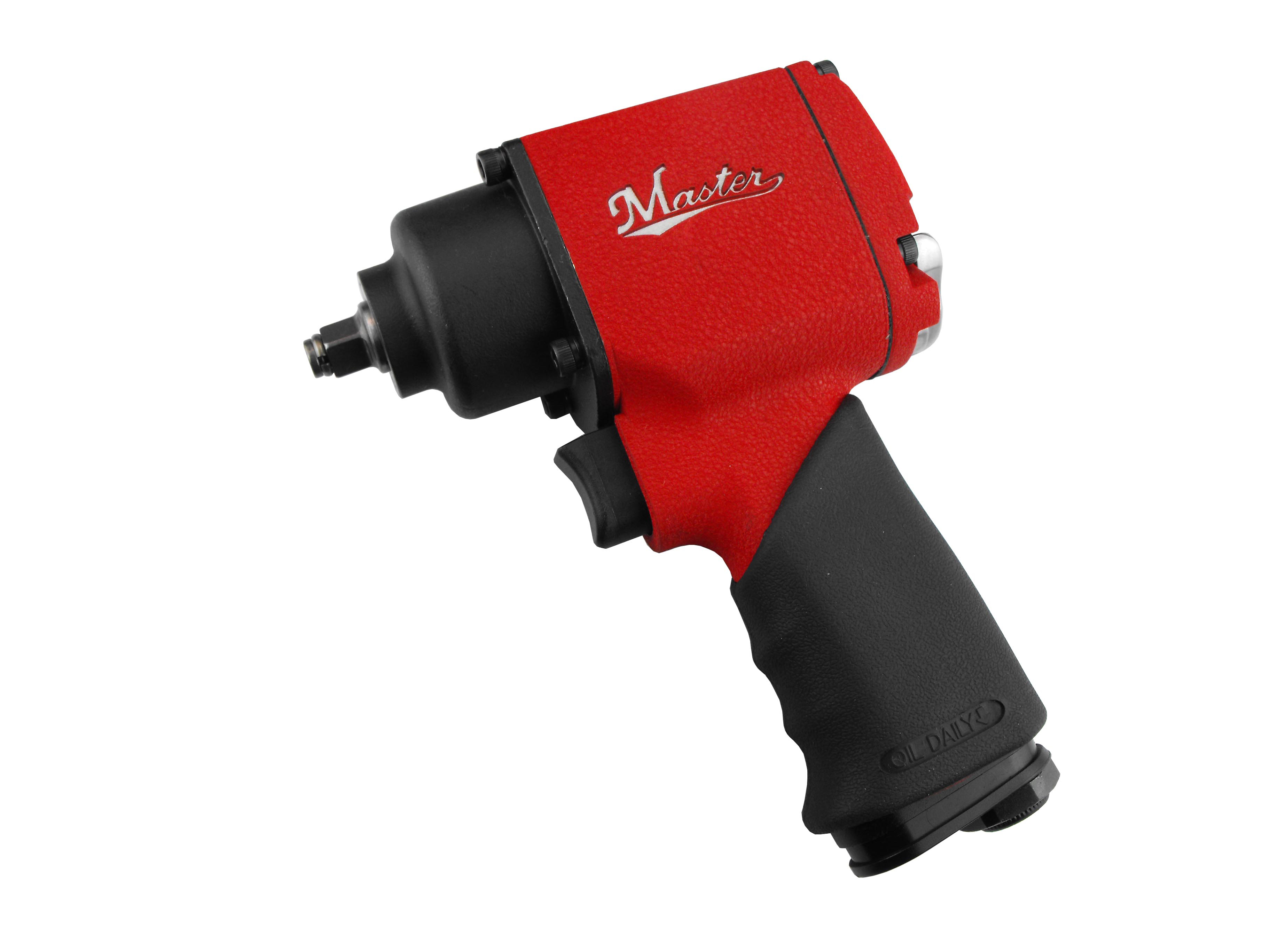

1/2" Impact Wrench Overview
This 1/2" Impact Wrench is engineered for precision and durability in heavy industrial settings. Featuring a twin hammer wobble mechanism, it provides instantaneous balanced blows that maximize torque transfer while minimizing vibration. The lightweight aluminum housing ensures ease of use and maintenance-free operation, ideal for factory and field applications.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 11,000 rpm |
| Air Consumption | 18 SCFM / 6.62688 m³/min |
| Air Pressure | 90 PSIA / 6.2055 bar |
| Max Torque | 500 ft-lb (678 Nm) |
| 5 Sec Torque | 450 ft-lb (610.2 Nm) |
| Weight | 1.5 kg (3.3 lb) |
| Square Drive | 1/2 in (12.7 mm) |
| Noise Level | 87 dBA |
| Impact Type | Twin Hammer |
| Impacts Per Minute | 1,500 IPM |
| Item No. | 68240 |
|---|---|
| Free Speed / RPM | 11000 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.529 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 5.472440945 |
| Overall Length / mm | 139 |
| Weight / lb | 3.3 |
| Weight / kg | 1.5 |
| Exhaust | Side |
| Noise / dBA | 87 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.31 |
| kW | 0.2325 |
| Square Drive / inch | 1/2 |
| Max Torque / ft-lb | 500 |
| Max Torque / Nm | 678 |
| 5 Sec Torque / ft-lb | 450 |
| 5 Sec Torque / Nm | 610.2 |
| Impact Type | twin hammer |
| Impact Per Minute | 1500 |
Key Features
- Twin hammer wobble impact mechanism for maximum torque and reduced vibration
- Lightweight aluminum housing for ease of handling and durability
- Oil-free design requiring no maintenance
- Safety-driven reverse switch to prevent accidental direction changes
- High free speed of 11,000 rpm for efficient operation
Applications
Industrial Applications
Designed for heavy-duty industrial jobs, this impact wrench excels in factory and maintenance environments requiring reliable torque delivery. The twin hammer design ensures balanced blows that reduce operator fatigue and extend tool life. Its lightweight and oil-free construction make it suitable for continuous use in demanding production lines and assembly operations.
