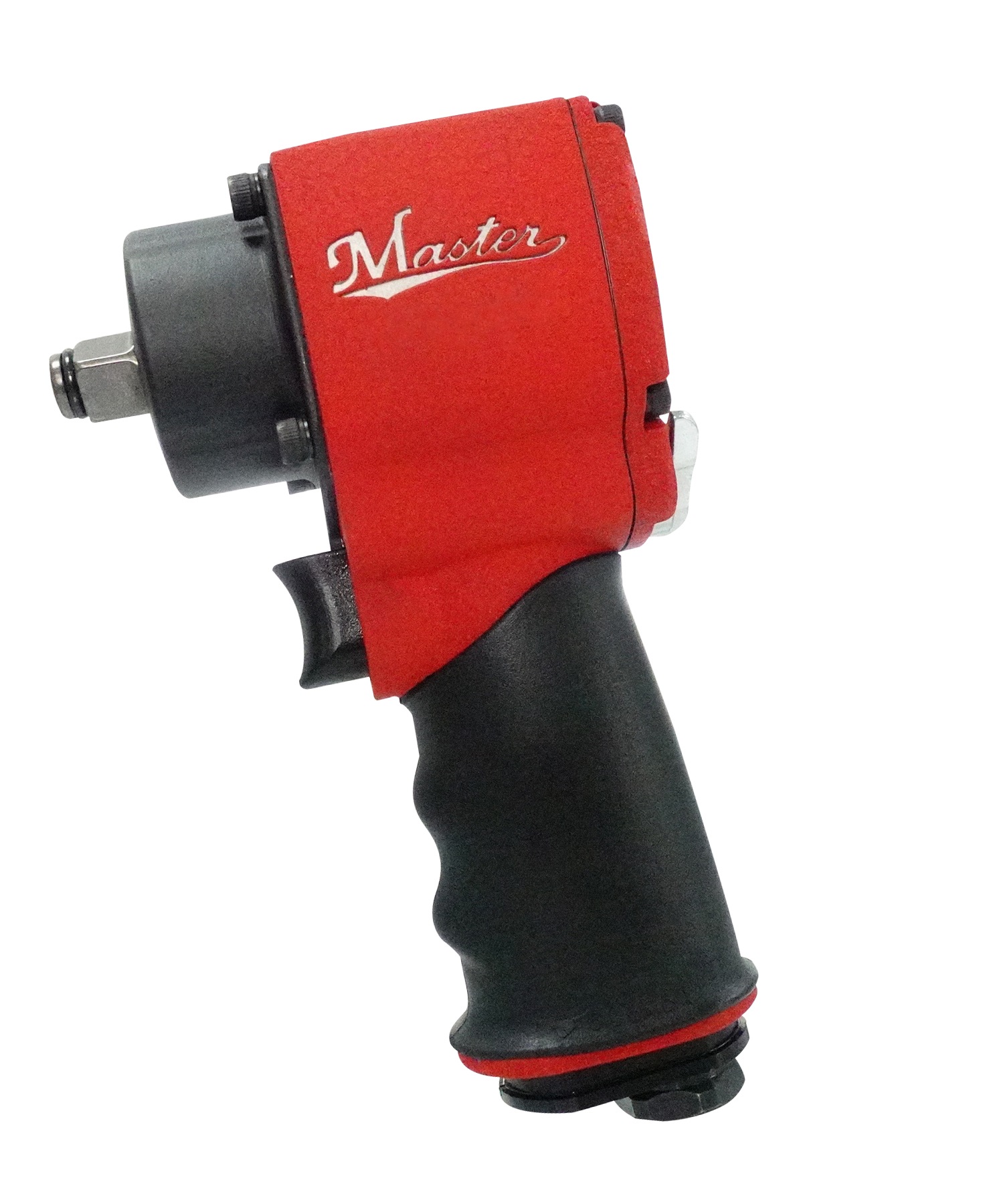

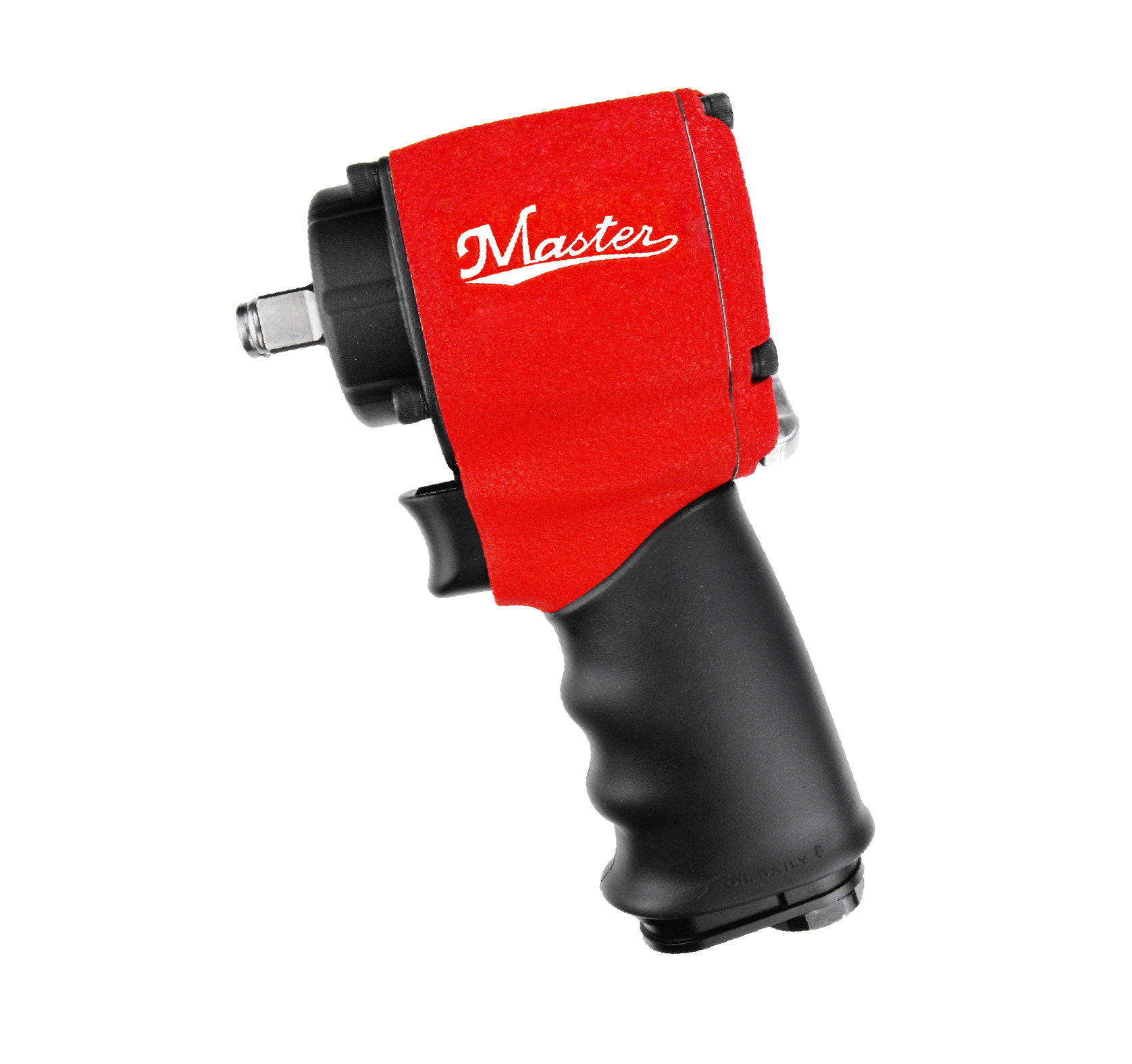

1/2" Mini Impact Wrench (Twin)
The 1/2" Mini Impact Wrench (Twin) is engineered for precision and durability in industrial settings. Its patented wobble anvil accommodates all universal type sockets within a 15-degree angle range, enabling safer and more efficient operation. Featuring a twin hammer design, it delivers balanced, instantaneous blows for heavy-duty tasks. The oil-free, lightweight aluminum housing ensures readiness and longevity. Safety-driven reverse switch control prevents accidental direction changes, while extended holding comfort reduces vibration during use.
| Specification | Value |
|---|---|
| Free Speed | 11000 RPM |
| Air Consumption | 10.24 SCFM / 7.2 CFM / 12.22 m³/hr / 0.2 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 4.25 in / 108 mm |
| Weight | 1.42 kg / 3.12 lb |
| Exhaust | Side |
| Noise Level | 87 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.75 HP / 0.56 kW |
| Square Drive | 1/2" / 12.7 mm |
| Max Torque | 550 ft-lb / 746 Nm |
| Item No. | 68530 |
|---|---|
| Free Speed / RPM | 11000 |
| Air Consumption / SCFM | 10.24 |
| Air Consumption / CFM | 7.2 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 4.25 |
| Overall Length / mm | 108 |
| Weight / lb | 3.12 |
| Weight / kg | 1.42 |
| Exhaust | Side |
| Noise / dBA | 87 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.75 |
| kW | 0.56 |
| Square Drive / inch | 1/2" |
| Max Torque / ft-lb | 550 |
| Max Torque / Nm | 746 |
Key Features
- Patented wobble anvil fits all universal type sockets within a 15-degree angle range for safer, easier operation.
- Twin hammer design delivers instantaneous balanced blows for heavy-duty industrial tasks.
- Oil-free design with lightweight aluminum housing ensures readiness and durability.
- Safety-driven reverse switch control prevents accidental direction changes.
- Extended holding comfort provides vibration resistance during operation.
- Designed for maximum performance control and ease of maintenance to extend service life.
Applications
Industrial Applications
Ideal for factory use and heavy-duty industrial environments requiring compact, durable air impact wrenches. Suitable for assembly lines, maintenance, and repair operations where precision and reliability are critical. Supports global distribution and RFQ inquiries for OEM and private-label solutions.
