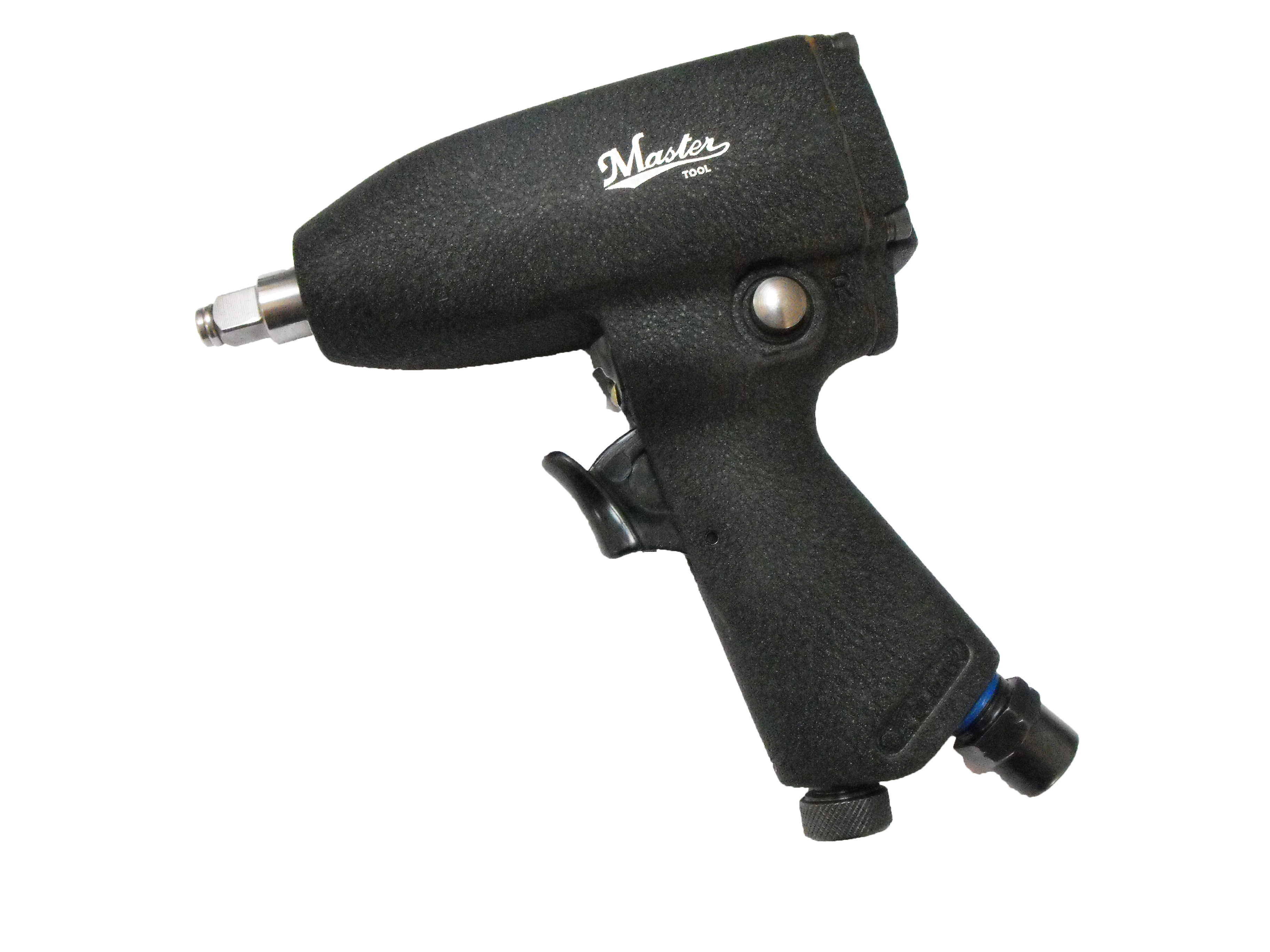

3/8" Air Impact Wrench Overview
This pneumatic impact wrench features a 3/8" square drive and a free speed of 11000rpm, engineered for heavy-duty industrial applications. Its compact design ensures ease of handling while maintaining robust performance and durability for factory use.
The tool includes an easy trigger design to prevent slipping and provides a feather-type effect for precise control. The reversible mechanism allows quick switching between forward and reverse socket operation via a direction press button.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 11000 rpm |
| Air Consumption | 21 SCFM / 7.73 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 149 mm (5.87 in) |
| Weight | 6.5 kg (14.3 lb) |
| Square Drive | 3/8 in (9.525 mm) |
| Max Torque | 300 ft-lb (406.8 Nm) |
| 5 Sec Torque | 115 ft-lb (155.94 Nm) |
| Impacts Per Minute | 9000 IPM |
| Impact Type | Single hammer |
| Noise Level | 88 dBA |
| Air Hose Size | 3/8 in (9.525 mm) |
| Item No. | 61200 |
|---|---|
| Free Speed / RPM | 11000 |
| Air Consumption / SCFM | 21 |
| Air Consumption / CFM | 2.9505 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 5.866141732 |
| Overall Length / mm | 149 |
| Weight / lb | 14.3 |
| Weight / kg | 6.5 |
| Exhaust | Side |
| Noise / dBA | 88 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.42 |
| kW | 0.315 |
| Square Drive / inch | 3/8 |
| Max Torque / ft-lb | 300 |
| Max Torque / Nm | 406.8 |
| 5 Sec Torque / ft-lb | 115 |
| 5 Sec Torque / Nm | 155.94 |
| Impact Type | single hammer |
| Impact Per Minute | 9000 |
Key Features
- 3/8" square drive impact wrench with 11000rpm free speed
- Easy trigger design prevents slipping and provides feather-type control
- Reversible design with direction press button for forward/reverse operation
- Single hammer impact mechanism delivering consistent torque
- Compact and durable construction suitable for industrial environments
Applications
Applications
- Industrial assembly lines requiring compact pneumatic tools
- Factory maintenance and repair tasks
- Automotive and heavy machinery fastening operations
- Situations demanding reliable torque and reversible socket control
