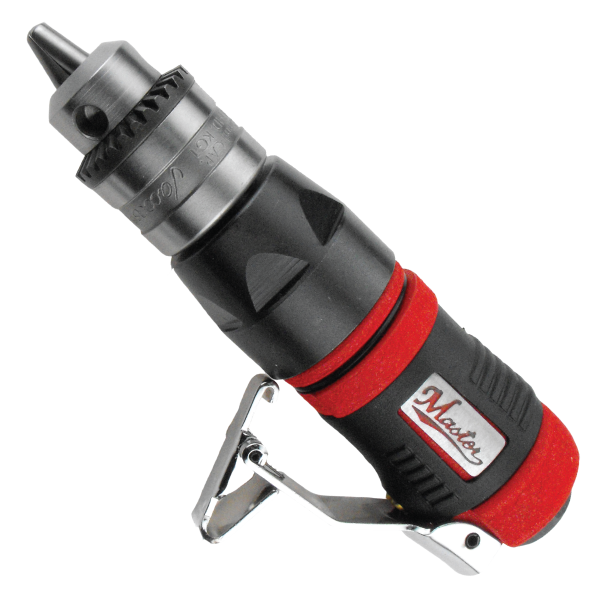

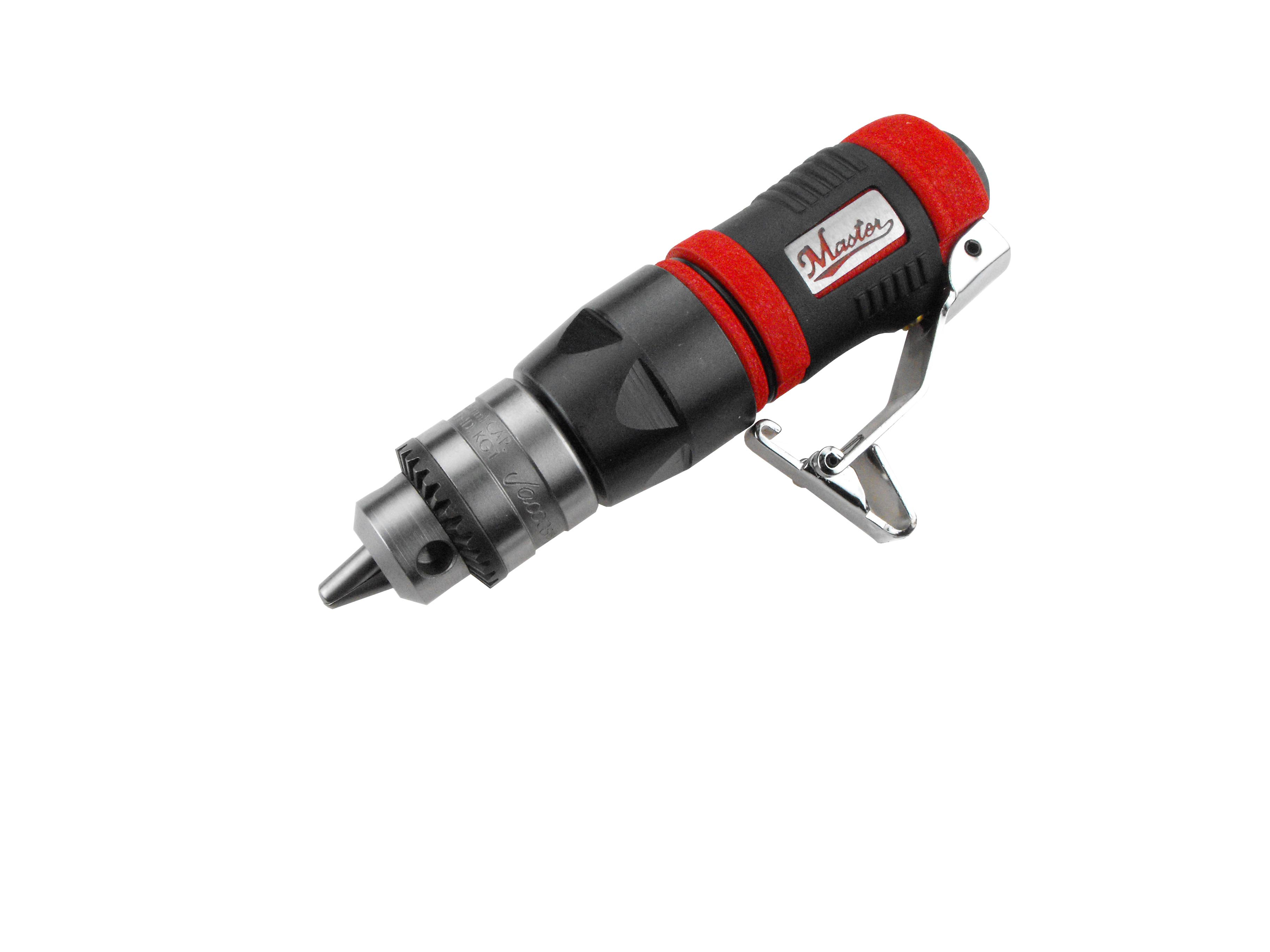

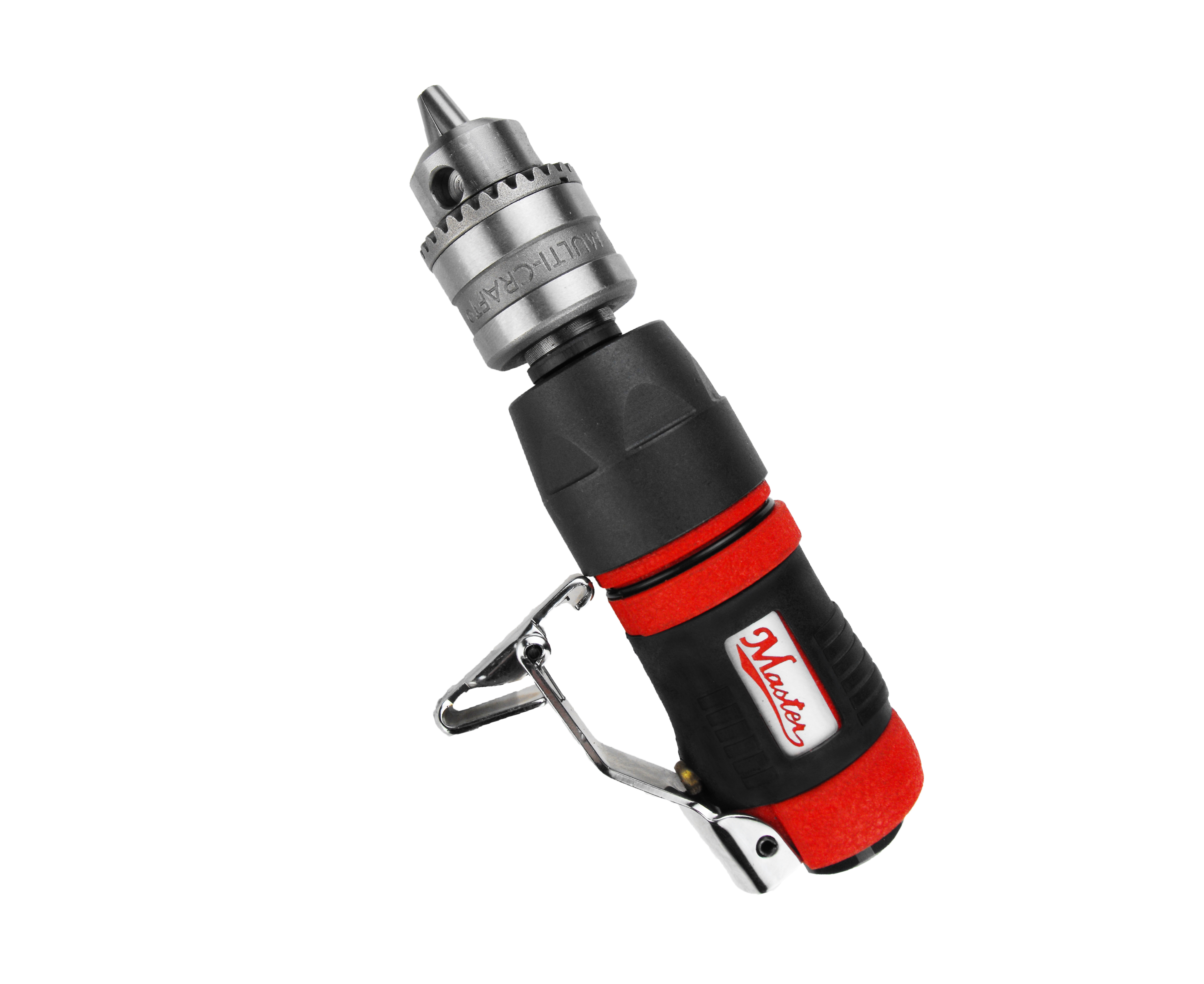

1/4" Straight Air Drill Overview
The 1/4" Straight Air Drill from Master Palm's Palm Mini series is engineered for precision and durability in industrial environments. Featuring a compact palm-sized housing, this drill integrates a high-quality Jacob keyed chuck and a gearbox to enhance drilling power. Its safety throttle control ensures reliable air flow management and prevents accidental startups, making it ideal for factory use in confined or hard-to-reach areas.
| Item No. | 21020 |
|---|---|
| Free Speed / RPM | 2000 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 2.015 |
| Air Pressure / PSI | 80 |
| Air Pressure / Bar | 5.516 |
| Overall Length / inch | 6.299212598 |
| Overall Length / mm | 160 |
| Weight / lb | 0.946 |
| Weight / kg | 0.43 |
| Exhaust | Rear |
| Noise / dBA | 80 |
| Air Hose Size / inch | 3/16 |
| Air Hose Size / mm | 4.7625 |
| Horsepower | 0.25 |
| kW | 0.1875 |
| Chuck Size / inch | 1/4 |
| Chuck Size / mm | 6.5 |
| Spindle Thread | 3/8-24T |
Key Features
- Compact and lightweight design for ease of use in tight spaces
- High-quality Jacob keyed chuck for secure bit holding
- Safety throttle control for precise air flow adjustment and prevention of accidental startups
- Gearbox design to increase drilling power despite small size
- Palm-sized housing that fits comfortably in hand, reducing operator fatigue
- High-speed capability suitable for materials like aluminum, tin, brass, and plastic
Applications
Applications
- Designed for touch drilling and precision tasks in confined or hard-to-reach areas
- Suitable for drilling aluminum, tin, brass, and plastic materials
- Ideal for industrial assembly lines requiring compact and durable pneumatic tools
- Effective for use in factory environments demanding reliable and safe air tools
