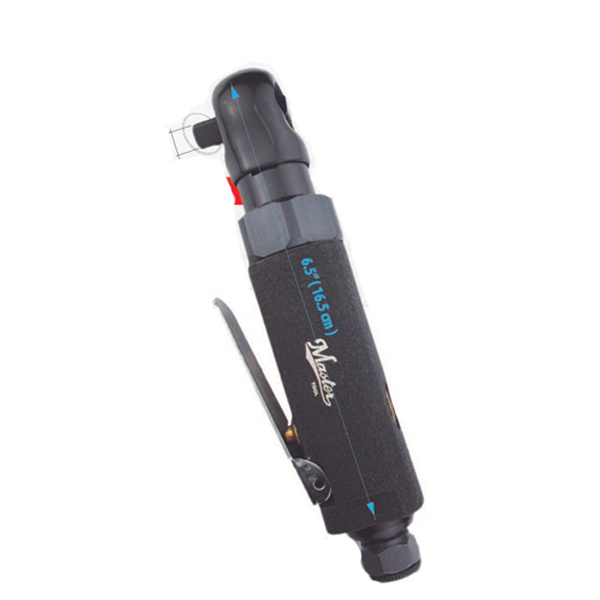

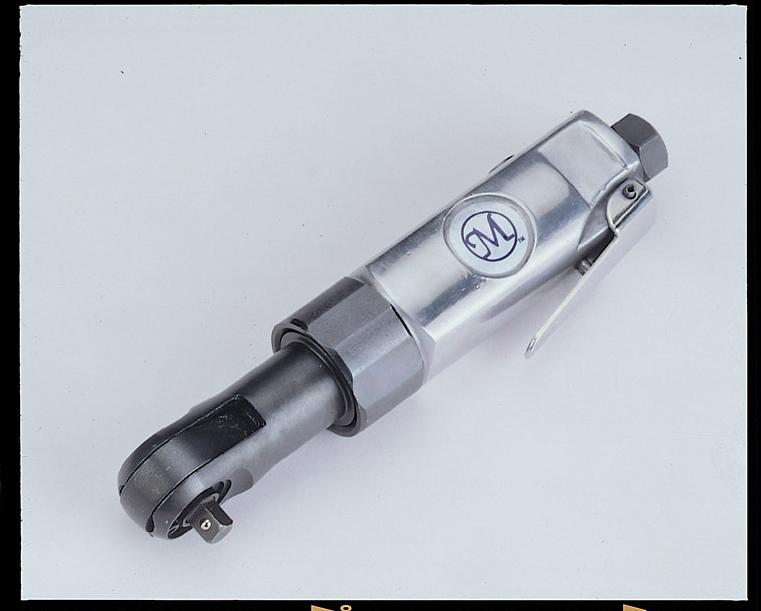

3/8" Ratchet Wrench Overview
The 3/8" Ratchet Wrench in the Stubby series is engineered for precision and compact power. Designed for industrial use, it supports socket sizes up to 13mm and features a shorter, stubby form factor for enhanced accessibility in confined areas.
Weighing only 1.1 lb (0.5 kg), this tool is suitable for both male and female operators, providing ease of handling and durability for factory environments.
| Item No. | 61120 |
|---|---|
| Free Speed / RPM | 350 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 1.8265 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 6.496062992 |
| Overall Length / mm | 165 |
| Weight / lb | 1.1 |
| Weight / kg | 0.5 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/4 |
| Air Hose Size / mm | 6.35 |
| Horsepower | 0.3 |
| kW | 0.225 |
| Square Drive / inch | 3/8 |
| Max Torque / ft-lb | 30 |
| Max Torque / Nm | 40 |
Key Features
- Compact design with high-quality bearings and rotor end for smooth power output
- Special reinforced planetary gear system for maximum service life
- Internal ring gear with three planetary gears for durability
- Self-lubricated blade to prevent wear on cylinder and end plates
- Free speed of 350 rpm
- Optional muffler MSA-005 available
Applications
Applications
- Compatible with socket sizes up to 13mm for mini ratchet wrench use
- Ideal for confined spaces such as under dashboard work
- Rear exhaust design enhances user comfort during operation
- Speed control via easy-holding safety clutch
- Rubber jacket protects ratchet head from scratches and surface damage
