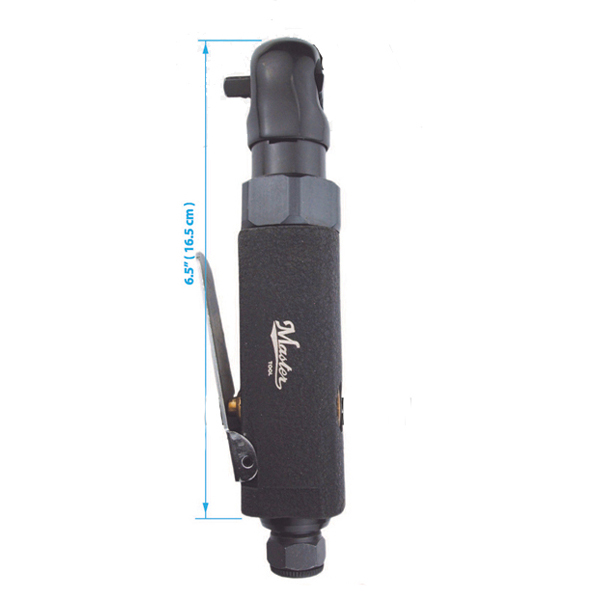

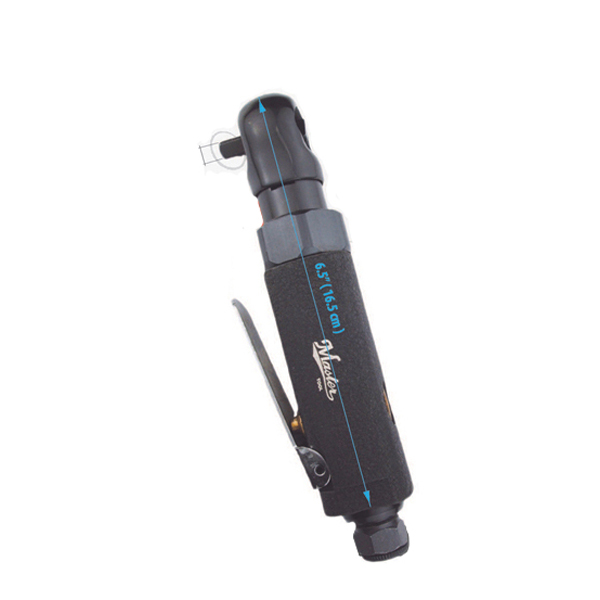

1/4" Ratchet Wrench Overview
The 1/4" Ratchet Wrench from Master Air Tool Co., Ltd. is engineered for precision and durability in industrial environments. Its compact stubby design allows operation in confined spaces such as under dashboards. The tool features a reinforced planetary gear system and self-lubricated blades to extend service life.
With a free speed of 350 rpm and rear exhaust design, this ratchet wrench ensures smooth power output and user comfort during extended factory use. The rubber jacket protects the ratchet head from damage, enhancing tool longevity.
| Item No. | 61110 |
|---|---|
| Free Speed / RPM | 350 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 1.8265 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 6.496062992 |
| Overall Length / mm | 165 |
| Weight / lb | 1.1 |
| Weight / kg | 0.5 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/4 |
| Air Hose Size / mm | 6.35 |
| Horsepower | 0.3 |
| kW | 0.225 |
| Square Drive / inch | 1/4 |
| Max Torque / ft-lb | 30 |
| Max Torque / Nm | 40 |
Key Features
- Compact design with high-quality bearings and rotor end for smooth power output
- Special reinforced planetary gear system for maximum service life
- Internal ring gear with three planetary gears for durability
- Self-lubricated blade to prevent wear on cylinder and end plates
- Free speed of 350 rpm for efficient operation
- Optional muffler MSA-005 available
Applications
Applications
- Supports socket sizes up to 13mm for versatile use
- Stubby design ideal for confined or hard-to-reach areas
- Rear exhaust system enhances user comfort during operation
- Easy speed control via safety clutch for precise torque application
- Rubber jacket protects ratchet head from scratches and damage
