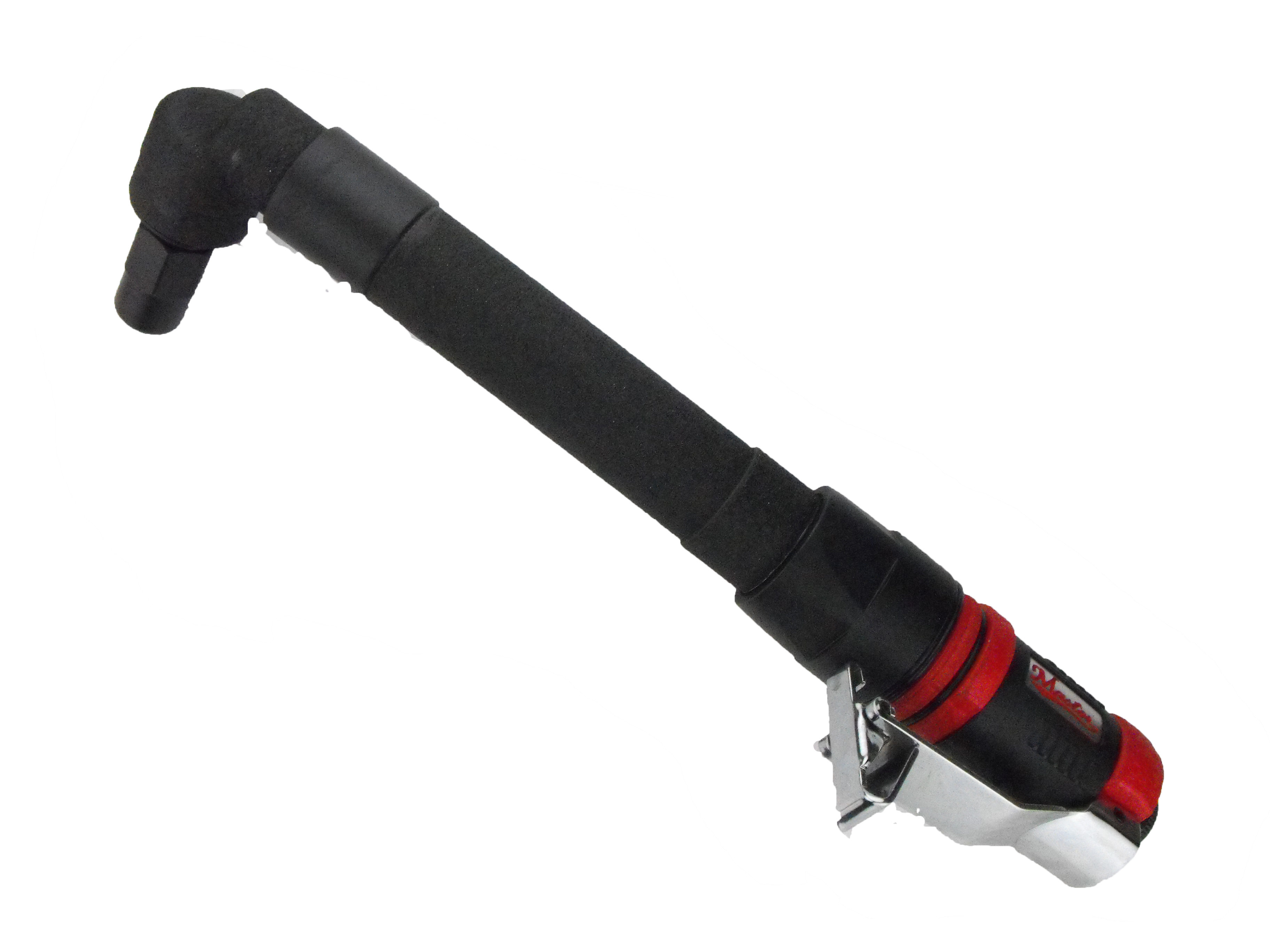

5" Extensive Shaft Right Angle Die Grinder
This tool is part of the Low Profile Angle Heavy Duty series, designed for factory use where compact power and precision engineering are essential. The extensive shaft allows access to hard-to-reach areas, while the low profile angle head facilitates operation on angular surfaces and corner tasks. The rear exhaust design supports muffler attachment to reduce noise levels, enhancing operator comfort in industrial environments.
| Item No. | 38390 |
|---|---|
| Free Speed / RPM | 20000 |
| Air Consumption / SCFM | 13 |
| Air Consumption / CFM | 1.8265 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Angle Height / inch | 0.94488189 |
| Angle Height / mm | 24 |
| Overall Length / inch | 11.61417323 |
| Overall Length / mm | 295 |
| Weight / lb | 1.54 |
| Weight / kg | 0.7 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/4 |
| Air Hose Size / mm | 6.4 |
| Horsepower | 0.3 |
| kW | 0.225 |
| Collet Size / inch | 1/4 |
| Collet Size / mm | 8 |
Features
- Low profile right angle head design for easy operation in confined and angular spaces.
- Extensive shaft extends reach to difficult areas.
- Rear exhaust with optional muffler (MSA-005) for noise reduction.
- Compact angle height of 0.4 cm to facilitate corner area tasks.
- Heavy-duty construction suitable for industrial applications.
Applications
Applications
Ideal for industrial tasks requiring precision in tight or angular spaces, this die grinder is suited for operations where extended reach and low profile design are critical. The tool supports noise reduction accessories and is optimized for factory environments demanding durability and compact power.
