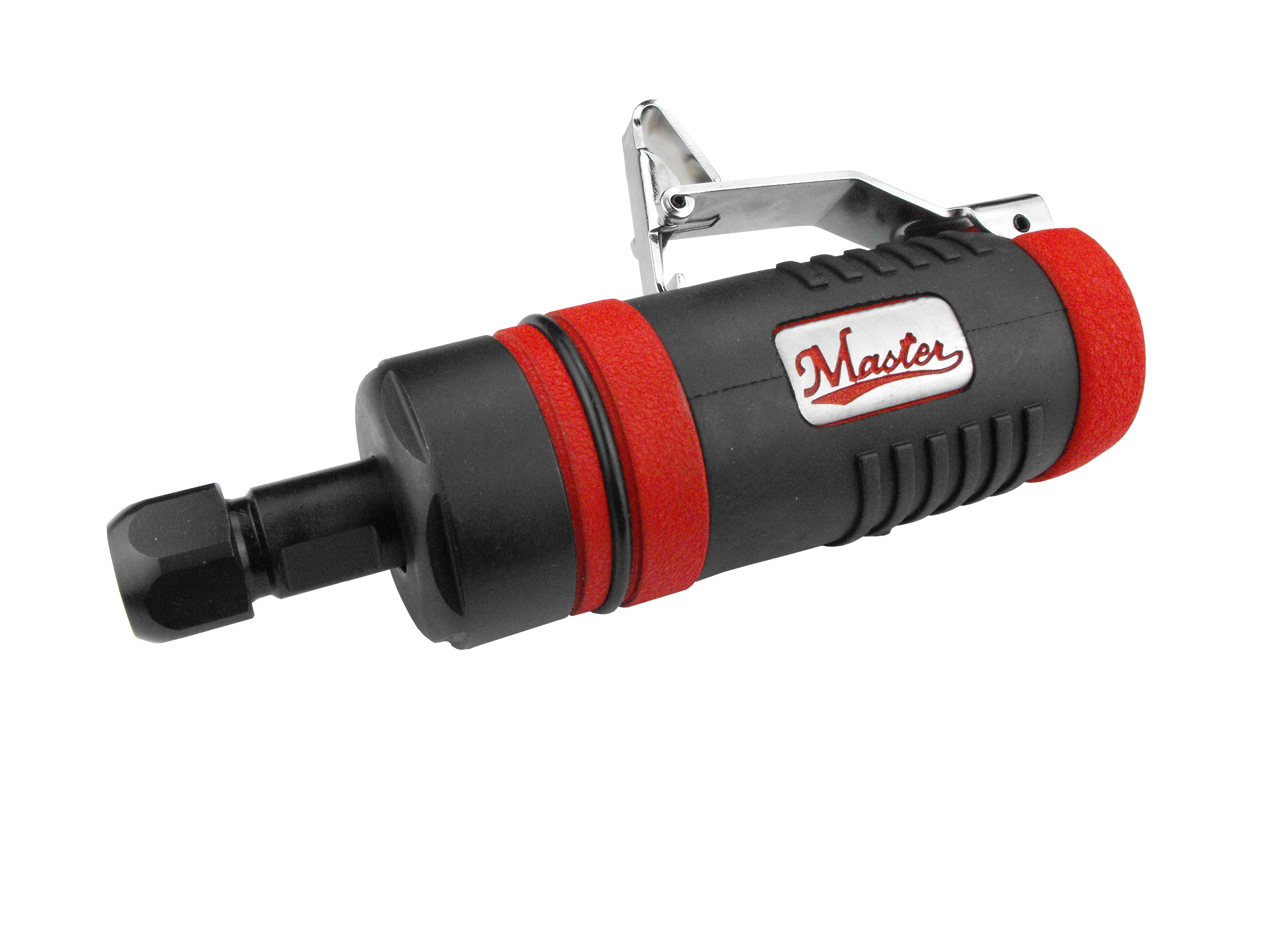

Industrial Series Straight Die Grinder
The Straight Die Grinder in the Industrial Series is engineered for precision and durability in factory environments. It features a free speed of 20,000 rpm and an ergonomic straight handle with rubber grip to enhance operator control and reduce fatigue. An optional muffler (MSA-006A) is available to minimize noise during operation.
This tool is designed for heavy-duty industrial use, providing compact power and reliability for demanding tasks.
| Item No. | 38220 |
|---|---|
| Free Speed / RPM | 22000 |
| Air Consumption / SCFM | 20 |
| Air Consumption / CFM | 2.81 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 7.637795276 |
| Overall Length / mm | 194 |
| Weight / lb | 1.452 |
| Weight / kg | 0.66 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
| Collet Size / inch | 1/4 |
| Collet Size / mm | 8 |
Features
- Free speed of 20,000 rpm for efficient grinding and polishing
- Straight handle design with rubber grip for increased holding strength and operator comfort
- Optional muffler MSA-006A to reduce operational noise
- Compact and durable construction suitable for industrial environments
Applications
Applications
- Porting tasks requiring precision grinding
- Weld breaking for industrial fabrication
- Polishing and surface finishing in manufacturing processes
