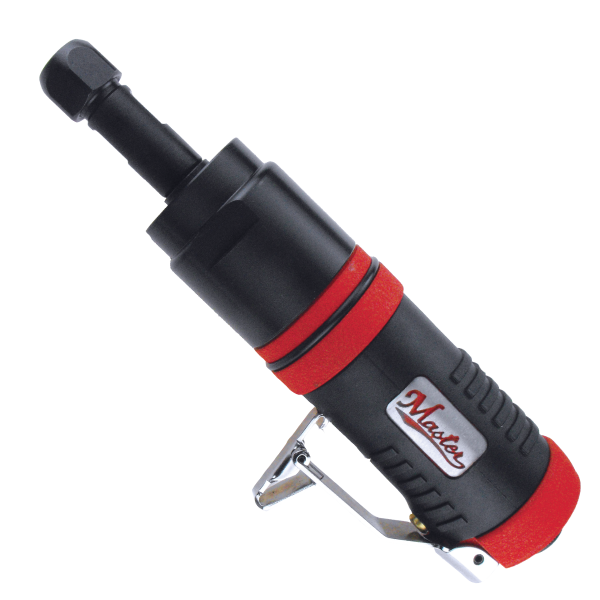

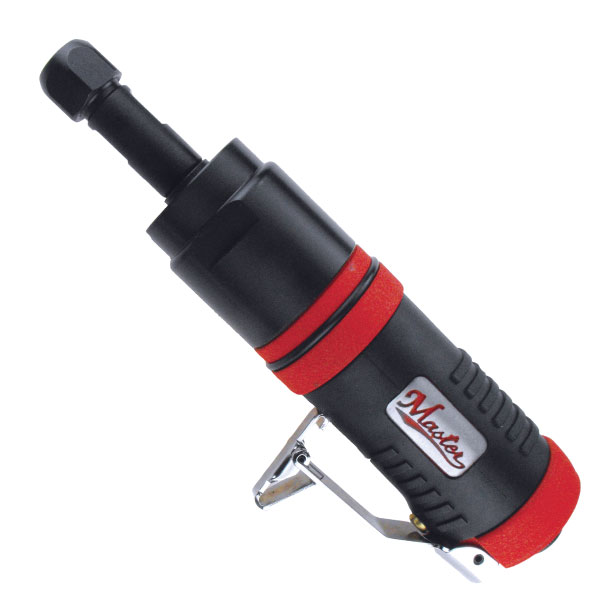

2" Extensive Shaft Straight Die Grinder Overview
The 2" Extensive Shaft Straight Die Grinder is engineered for precision and durability in industrial settings. Featuring a free speed of 2200 rpm, this pneumatic tool supports efficient material removal and finishing tasks. Its compact form factor and optional muffler (MSA-006A) enhance usability and noise control for factory operations.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 2200 rpm |
| Air Consumption | 20 SCFM / 2.81 CFM / 441.792 m³/hr / 7.3632 m³/min |
| Air Pressure | 6.3279 kg/cm² / 90 PSIA / 6.2055 bar / 620.55 kPa |
| Overall Length | 8.07 in / 205 mm |
| Weight | 0.83 kg / 1.826 lb |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8 in / 9.525 mm |
| Horsepower | 0.9 HP / 0.675 kW |
| Collet Sizes | 1/4 in, 1/8 in, 3 mm, 6 mm, 8 mm |
| Item No. | 38610 |
|---|---|
| Free Speed / RPM | 2200 |
| Air Consumption / SCFM | 20 |
| Air Consumption / CFM | 2.81 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 8.070866142 |
| Overall Length / mm | 205 |
| Weight / lb | 1.826 |
| Weight / kg | 0.83 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
| Collet Size / inch | 1/4 |
| Collet Size / mm | 8 |
Key Features
Industrial Series 2" Extensive Shaft Straight Die Grinder offers:
- 2200 rpm free speed for consistent performance
- Optional muffler MSA-006A for noise reduction
- Compact and durable design for heavy industrial use
- Multiple collet size compatibility (1/4", 1/8", 3 mm, 6 mm, 8 mm)
- Rear exhaust to direct airflow away from the operator
Applications
Applications
The 2" Extensive Shaft Straight Die Grinder is designed for precision grinding, finishing, and material removal in industrial environments. Its compact power and durability make it suitable for use in manufacturing plants, maintenance workshops, and other factory settings requiring reliable pneumatic tooling.
