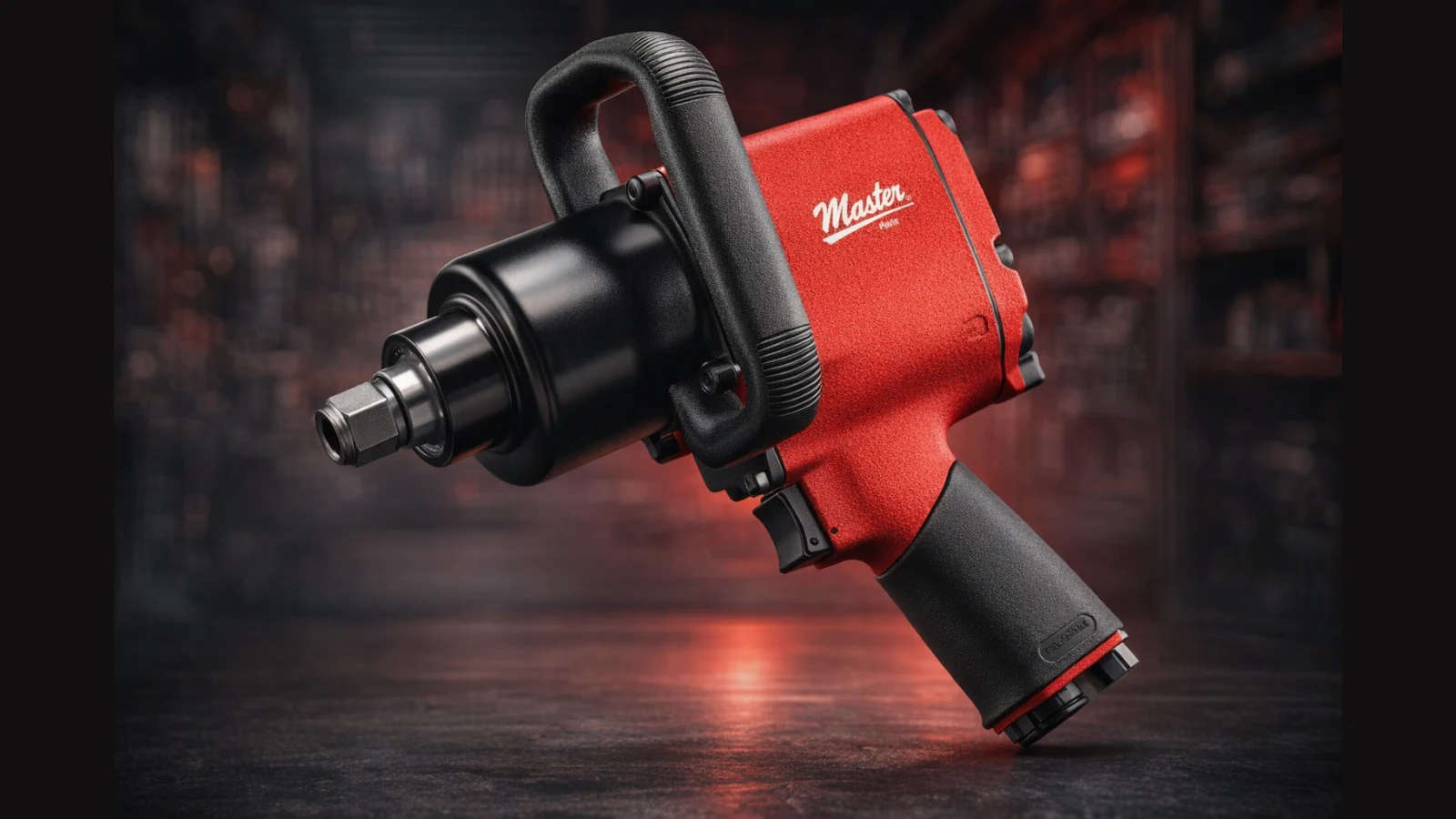

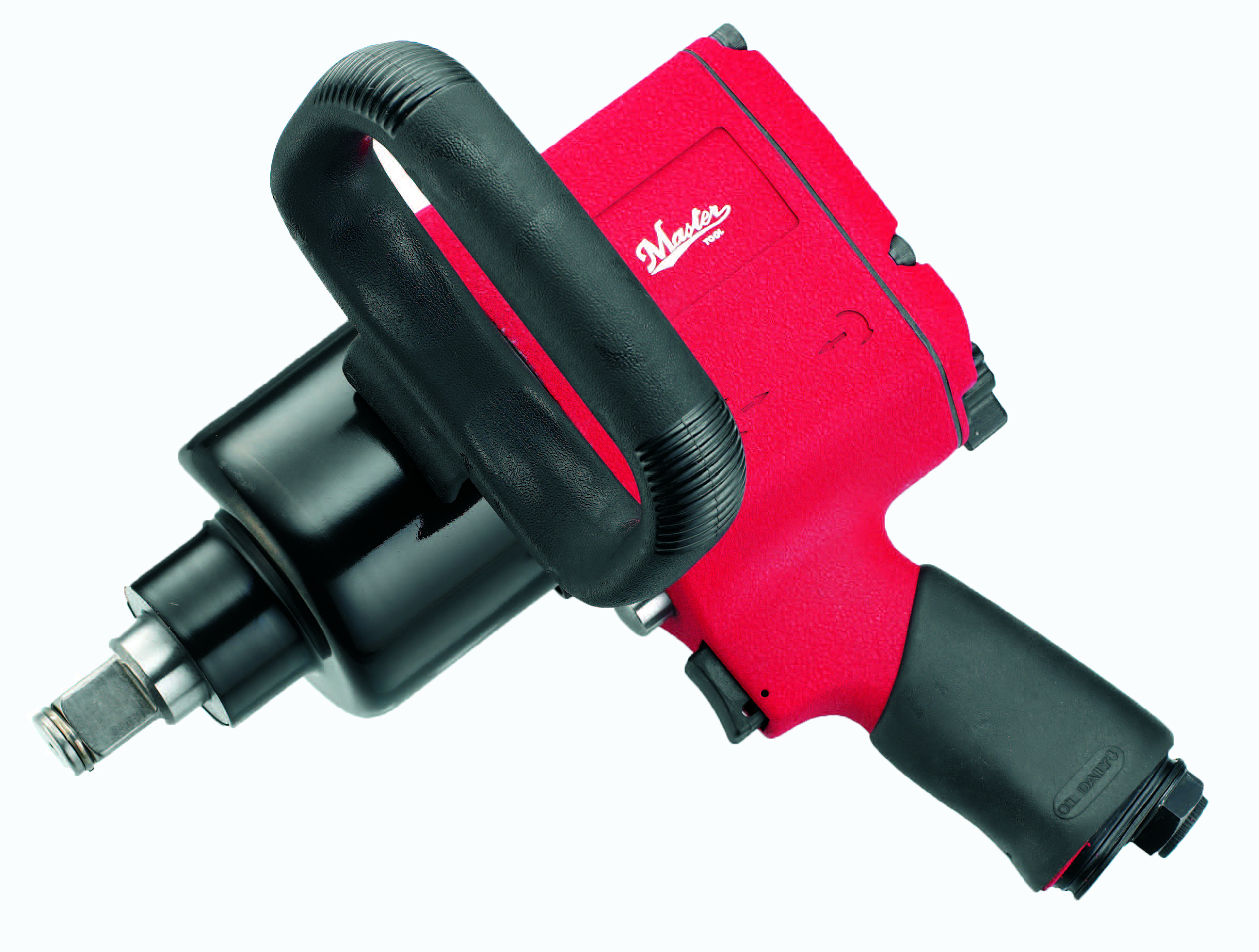

1" Pistol Impact Wrench Overview
This industrial-grade pneumatic impact wrench features a 1" square drive twin hammer mechanism providing reliable power and precision. Engineered for heavy-duty factory use, it offers a free speed of 3500 rpm and a maximum torque of 1800 ft-lb, ensuring robust performance in demanding applications.
The tool includes an extra side D-handle for enhanced operator control and a rubber jacket grip to improve handling strength. Its speed control switch allows precise adjustment to meet specific operational requirements.
Designed for durability and efficiency, this impact wrench supports global distribution and RFQ inquiries for OEM and private-label solutions.
| Item No. | 68340 |
|---|---|
| Free Speed / RPM | 3500 |
| Air Consumption / SCFM | 50 |
| Air Consumption / CFM | 7.025 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 10.90551181 |
| Overall Length / mm | 277 |
| Weight / lb | 18.26 |
| Weight / kg | 8.3 |
| Exhaust | Side |
| Noise / dBA | 96 |
| Air Hose Size / inch | 1/2 |
| Air Hose Size / mm | 12.7 |
| Horsepower | 0.74 |
| kW | 0.555 |
| Square Drive / inch | 1 |
| Max Torque / ft-lb | 1800 |
| Max Torque / Nm | 2440.8 |
| 5 Sec Torque / ft-lb | 1600 |
| 5 Sec Torque / Nm | 2169.6 |
| Impact Type | twin hammer |
| Impact Per Minute | 480 |
Key Features
- 1" square drive twin hammer impact mechanism
- Free speed: 3500 rpm
- Maximum torque: 1800 ft-lb (2440.8 Nm)
- Extra side D-handle for enhanced support
- Rubber jacket grip for improved holding strength
- Easy speed control switch for precise operation
- Durable construction for heavy industrial use
Applications
Applications
Ideal for heavy-duty fastening and loosening tasks in industrial and factory settings. The 1" square drive is suited for large bolts and nuts requiring high torque. The ergonomic side handle and grip design support extended use in assembly lines, maintenance, and repair operations.
