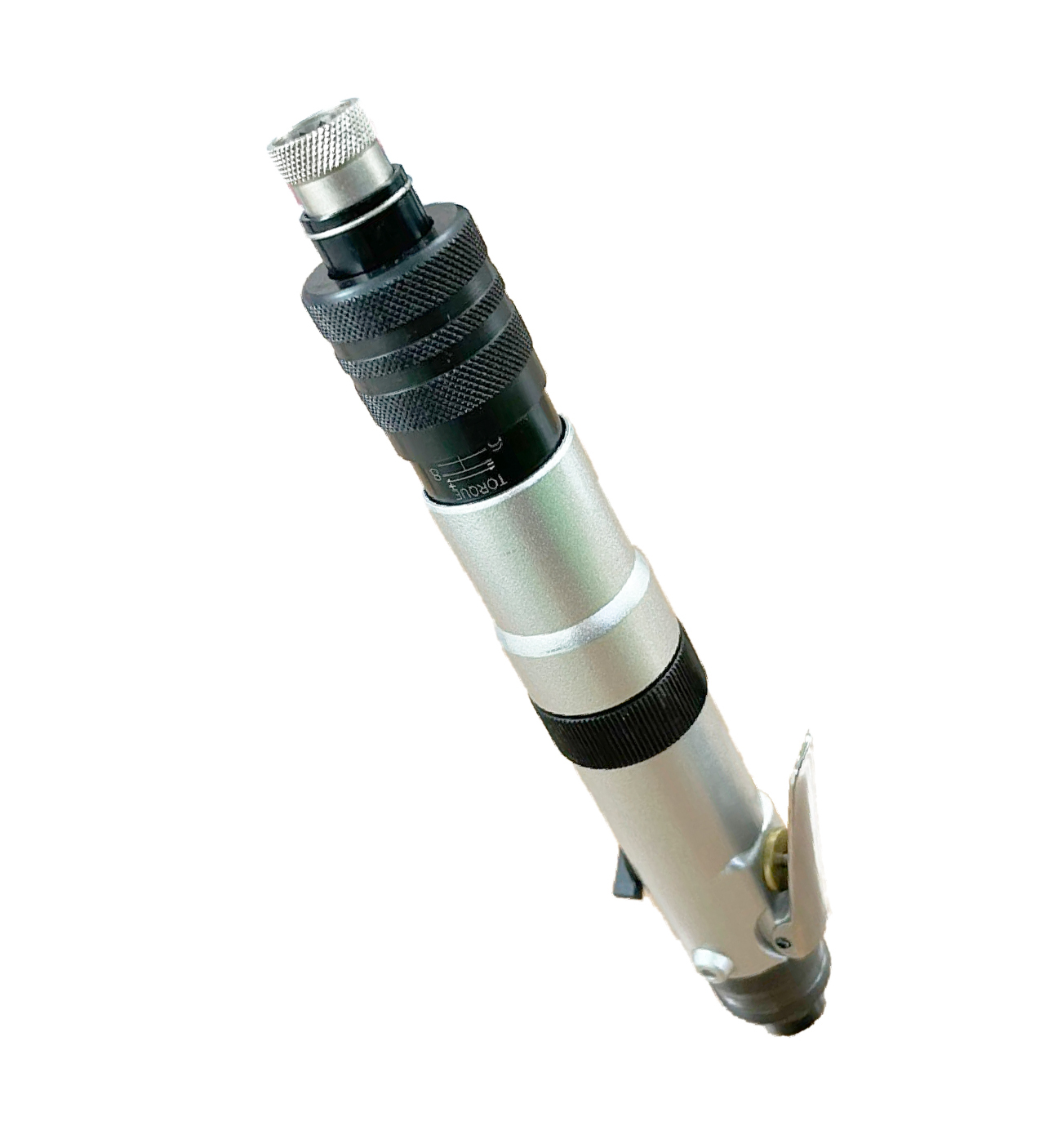

Torque Control Screwdriver-Lever Overview
The Torque Control Screwdriver-Lever is engineered for precision and durability in demanding industrial applications. It features a torque control valve that automatically shuts off air supply once the preset torque is achieved, preventing over-tightening and ensuring consistent assembly quality. The tool supports connection to a muffler hose to reduce operational noise, enhancing factory workplace conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 1000 RPM |
| Air Consumption | 11.7 SCFM / 8.5 CFM / 14.43 m³/hr / 0.26 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.05 in / 229 mm |
| Weight | 0.62 kg / 1.37 lb |
| Exhaust | Rear |
| Air Hose Size | 3/16" in / 12.7 mm |
| Max Torque | 3.5-17.7 ft-lb / 0.4-2.0 Nm |
| Iron Hex | 1/4" / 6.35 mm |
| Item No. | 71850 |
|---|---|
| Free Speed / RPM | 1000 |
| Air Consumption / SCFM | 11.7 |
| Air Consumption / CFM | 8.5 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.05 |
| Overall Length / mm | 229 |
| Weight / lb | 1.37 |
| Weight / kg | 0.62 |
| Exhaust | Rear |
| Air Hose Size / inch | 3/16" |
| Air Hose Size / mm | 12.7 |
| Max Torque / ft-lb | 3.5-17.7 |
| Max Torque / Nm | 0.4-2.0 |
Key Features
Correct torque control with high accuracy and stable torque output ensures reliable fastening. The torque control valve automatically closes the air supply when the set torque value is reached, stopping operation to prevent over-torquing. Users can connect a muffler hose to reduce noise during tool operation, supporting a safer and more comfortable factory environment.
Applications
Applications
Designed for industrial assembly lines and factory use, the Torque Control Screwdriver-Lever is ideal for precision fastening tasks requiring consistent torque control. Its compact and durable design suits high-volume production environments where accuracy and reliability are critical.
