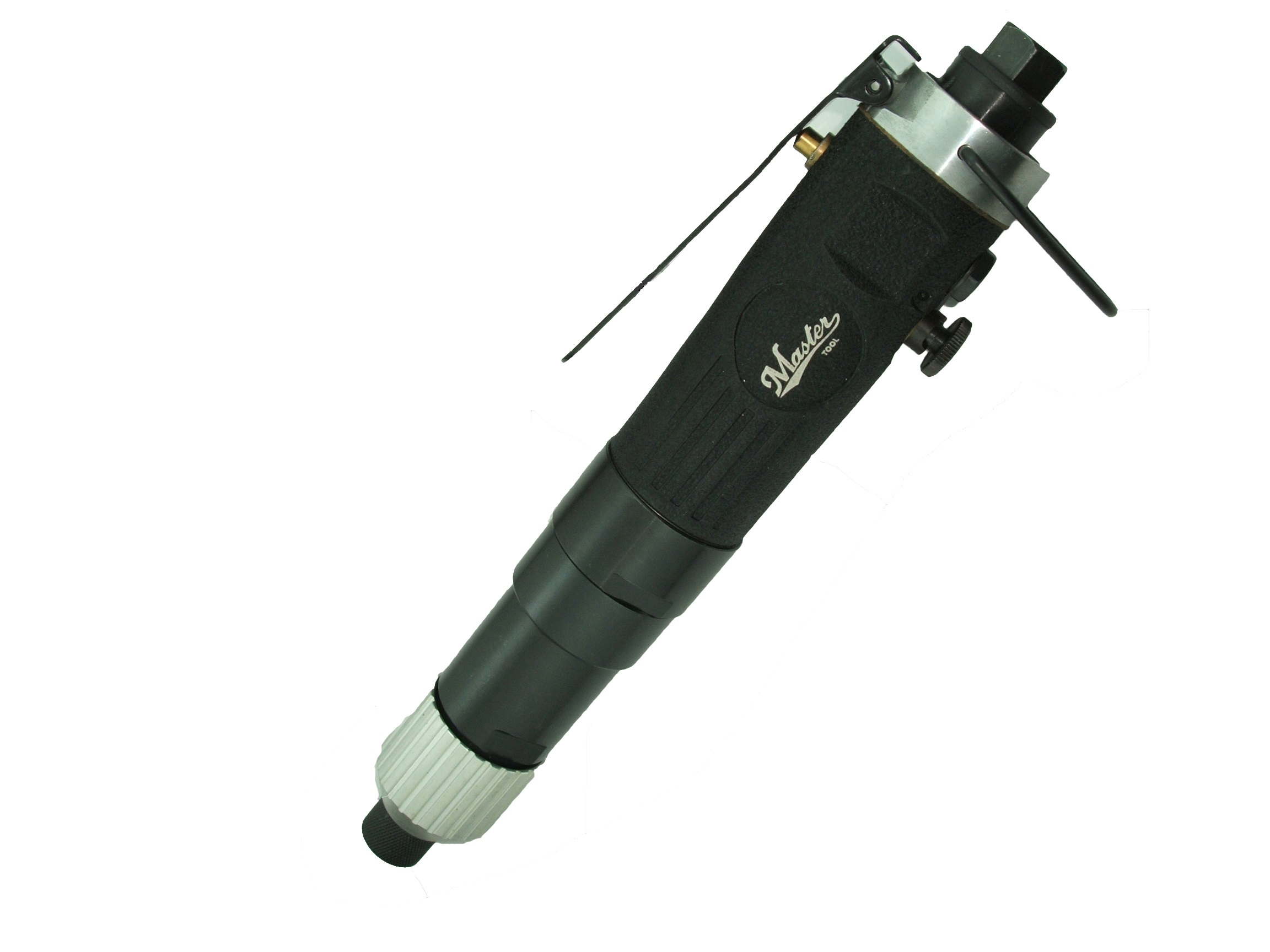

External Adjustable Torque Straight Screwdriver
This industrial-grade pneumatic screwdriver is engineered for precision torque control and durability in factory environments. It features an external torque switch allowing quick and accurate torque adjustments. The reversible design enables forward and backward operation with a simple direction switch. The cam-over torque limiting clutch ensures consistent torque application by signaling when the preset maximum torque is reached.
| Item No. | 71460 |
|---|---|
| Free Speed / RPM | 1600 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.21 |
| Angle Height / inch | 0 |
| Angle Height / mm | 0 |
| Overall Length / inch | 10.83 |
| Overall Length / mm | 275 |
| Weight / lb | 2.49 |
| Weight / kg | 1.13 |
| Exhaust | Rear |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.52 |
| Horsepower | 0.9 |
| kW | 0.68 |
Features
- External Torque Switch: Enables easy adjustment of torque within the desired range for precise fastening.
- Easy Torque Adjustment: Rotate the front torque silver switch to set different torque levels quickly.
- Reversible Operation: Direction switch allows seamless forward and backward rotation.
- Cam-over Torque Limiting Clutch: Provides feedback when maximum torque is achieved to prevent over-tightening.
Applications
Applications
- Industrial assembly lines requiring precise torque control.
- Maintenance and repair tasks needing reversible screwdriver operation.
- Factory environments demanding durable and reliable pneumatic tools.
