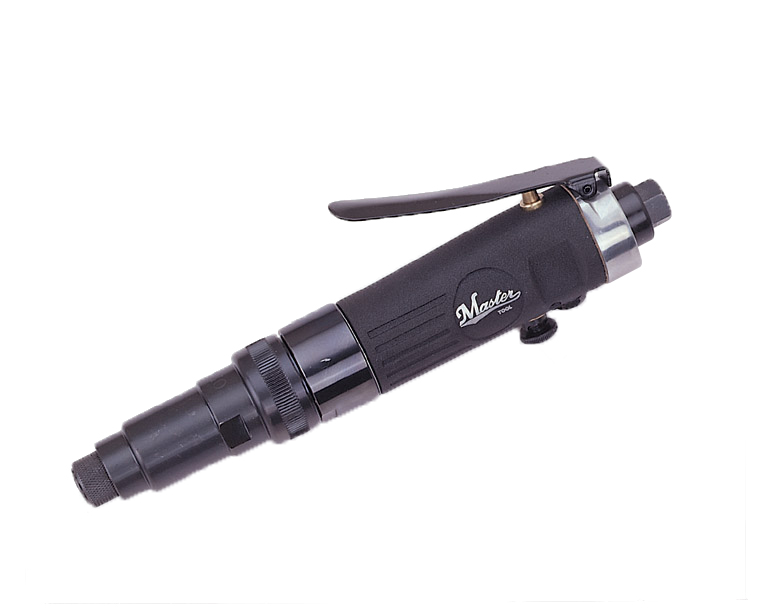

Internal Adjustable Torque Straight Screwdriver
This screwdriver is engineered for industrial environments requiring precise torque control and durability. It features a pull-up direction switch for forward and backward operation and a cam-over torque limiting clutch that signals when maximum torque is reached. The tool allows spring exchange to adjust torque range, enhancing versatility for factory use.
| Specification | Value |
|---|---|
| Free Speed | 1700 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 6.21 bar / 90 PSIA |
| Overall Length | 256 mm / 10.08 in |
| Weight | 1.13 kg / 2.49 lb |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8 in / 9.52 mm |
| Horsepower | 0.9 HP / 0.68 kW |
| Torque Range | 40 to 115 ft-lb (4.52 to 12.99 Nm) |
| Item No. | 71500 |
|---|---|
| Free Speed / RPM | 1700 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.21 |
| Overall Length / inch | 10.08 |
| Overall Length / mm | 256 |
| Weight / lb | 2.49 |
| Weight / kg | 1.13 |
| Exhaust | Rear |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.52 |
| Horsepower | 0.9 |
| kW | 0.68 |
Key Features
- Direction Switch: Pull up the switch to change between forward and backward rotation.
- Cam-over Torque Limiting Clutch: Provides a clear signal when the maximum torque is achieved, ensuring precision.
- Adjustable Torque Range: Rotate to open and exchange the spring to set different torque ranges for varied applications.
Applications
Applications
Designed for factory and industrial assembly lines, this screwdriver is ideal for tasks requiring precise torque control and reversible operation. Its adjustable torque spring allows adaptation to multiple fastening requirements, supporting efficient and reliable production processes.
