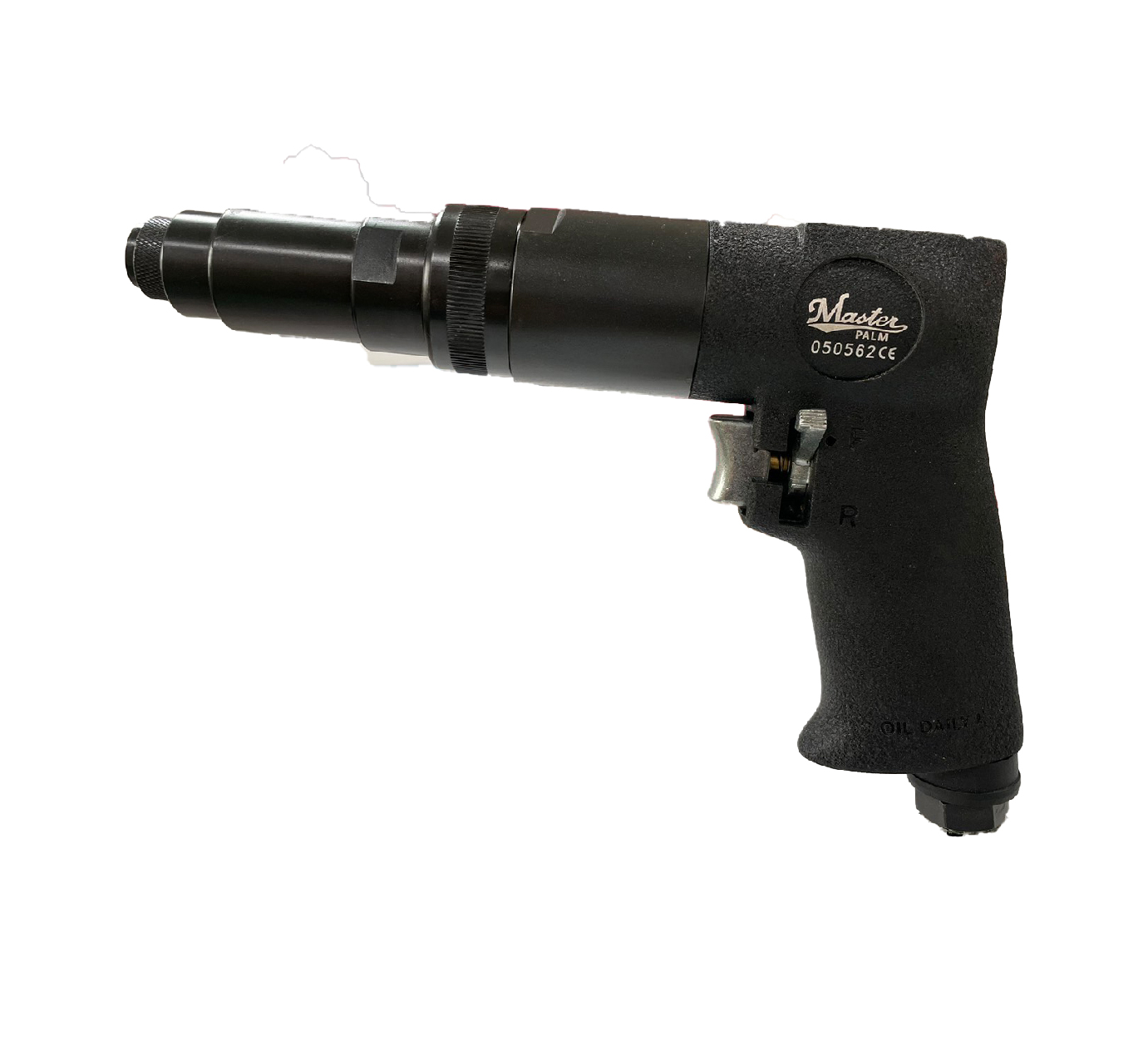

1/4" Air Screwdriver Overview
The 1/4" Air Screwdriver in the No Reversible series is engineered for precision and durability in industrial environments. It features a palm curve tail design and side handle to optimize push strength and control during operation. This tool supports fast one-way direction usage, making it ideal for factory and assembly line applications requiring consistent torque and reliability.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 800 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.5 in / 241 mm |
| Weight | 1.3 kg / 2.87 lb |
| Exhaust | Side |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.5 HP / 0.38 kW |
| Max Torque | 40-135 ft-lb / 4.5-15.3 Nm |
| Item No. | 71580 |
|---|---|
| Free Speed / RPM | 800 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.5 |
| Overall Length / mm | 241 |
| Weight / lb | 2.87 |
| Weight / kg | 1.3 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Max Torque / ft-lb | 40-135 |
| Max Torque / Nm | 4.5-15.3 |
Key Features
- Designed for fast one-way direction usage with powerful drilling power and strength.
- Palm curve tail design provides easy push point strength combined with a side handle for improved control.
- Special Pressure Push Design enhances holding strength by allowing the operator to push down with the palm during operation.
- Ergonomic design provides comfort during applications requiring sustained strength and long duration use.
Applications
Industrial Applications
This air screwdriver is ideal for factory and industrial assembly lines where consistent torque and durability are essential. Its compact design and ergonomic features support prolonged use in manufacturing, maintenance, and repair operations requiring reliable one-way fastening performance.
