Product Overview

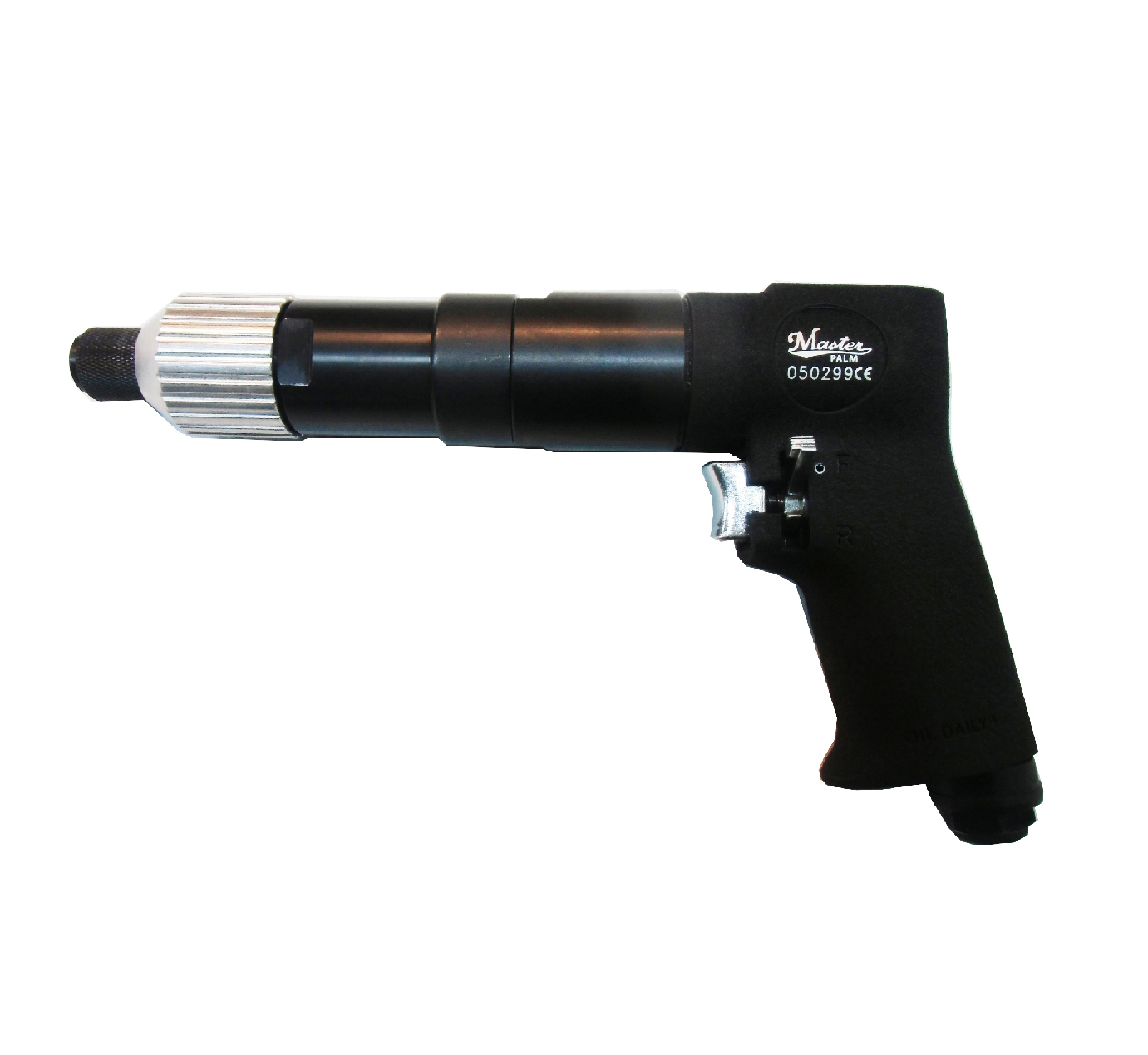

The 1/4" External TorquerScrewdrive is engineered for industrial use, providing adjustable torque settings to meet specific application requirements. Its pneumatic design ensures reliable power and durability for factory environments.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 800 RPM |
| Air Consumption | 19.1 SCFM / 13.4 CFM / 22.75 m³/hr / 0.38 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.05 in / 230 mm |
| Weight | 1 kg / 2.2 lb |
| Exhaust | Side |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8" / 9.5 mm |
| Horsepower | 0.5 HP |
| Power | 0.38 kW |
| Max Torque | 50-130 ft-lb / 5.7-14.7 Nm |
| Item No. | 71490 |
|---|---|
| Free Speed / RPM | 800 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.05 |
| Overall Length / mm | 230 |
| Weight / lb | 2.2 |
| Weight / kg | 1 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Max Torque / ft-lb | 50-130 |
| Max Torque / Nm | 5.7-14.7 |
Key Features
- Adjustable torque range for precise control
- Torque switch design enables fast and easy operation
- Palm curve tail design enhances push point strength with side handle
- Special pressure push design improves holding strength during use
- Ergonomic for comfort during long-duration, high-strength applications
Applications
Applications
Designed for industrial and factory environments, this pneumatic screwdriver is ideal for assembly tasks requiring precise torque control and durability. Suitable for repetitive fastening operations where operator comfort and tool reliability are critical.
