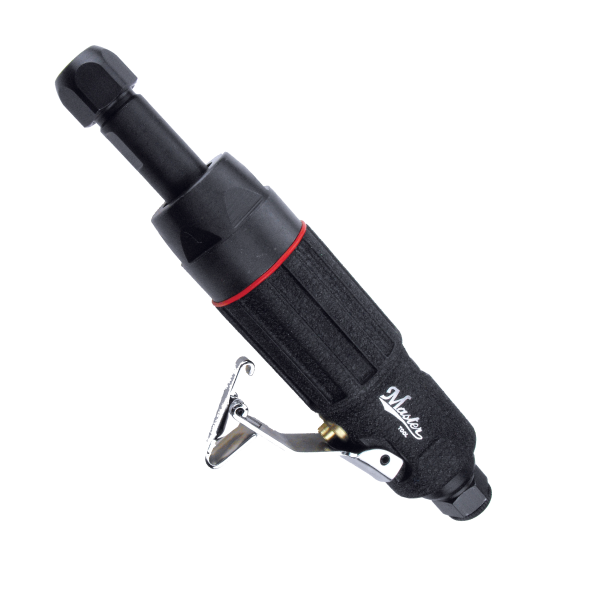

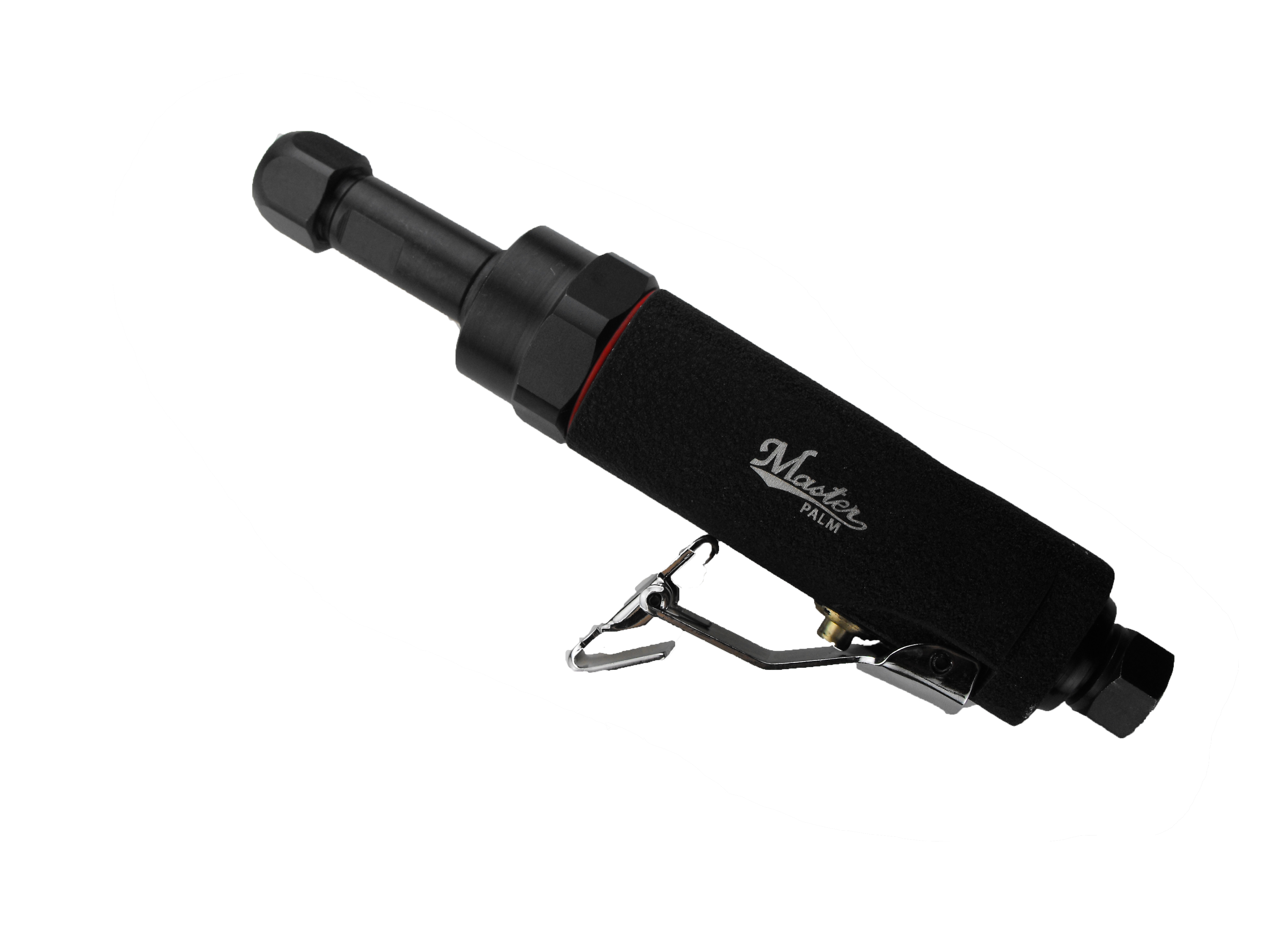

Straight Die Grinder Overview
The Power Series Straight Die Grinder model 31110 is engineered for precision and durability in demanding industrial settings. Featuring a free speed of 6000 rpm, it supports efficient and reliable operation for various factory applications. The tool includes an optional muffler (MSA-005) to reduce noise levels during use.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 6000 rpm |
| Air Consumption | 14 SCFM / 1.967 CFM / 309.2544 m³/hr / 5.15424 m³/min |
| Air Pressure | 6.3279 kg/cm² / 90 PSIA / 6.2055 bar / 620.55 kPa |
| Overall Length | 146 mm / 5.748 in |
| Weight | 0 lb |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 1/4 in / 6.4 mm |
| Horsepower | 0.3 HP / 0.225 kW |
| Collet Sizes | 1/4 in, 1/8 in, 6 mm, 3 mm |
| Item No. | 31110 |
|---|---|
| Free Speed / RPM | 6000 |
| Air Consumption / SCFM | 14 |
| Air Consumption / CFM | 1.967 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 5.748031496 |
| Overall Length / mm | 146 |
| Weight / lb | 0 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 1/4 |
| Air Hose Size / mm | 6.4 |
| Horsepower | 0.3 |
| kW | 0.225 |
| Collet Size / inch | 1/4 |
Key Features
- Power Series Straight Die Grinder with robust pneumatic technology
- Free speed of 6000 rpm for precise and efficient grinding
- Optional muffler MSA-005 for noise reduction
- Multiple collet sizes: 1/4 in, 1/8 in, 6 mm, 3 mm for versatile tool attachments
- Rear exhaust design to optimize operator comfort
- Compact length of 146 mm supports tight workspace operations
Applications
Industrial Applications
The Straight Die Grinder is designed for heavy-duty factory use requiring compact power and precision. It is suitable for grinding, deburring, and finishing tasks across various manufacturing and maintenance operations. Its durable construction and global distribution support make it ideal for industrial environments demanding reliable pneumatic tools.
