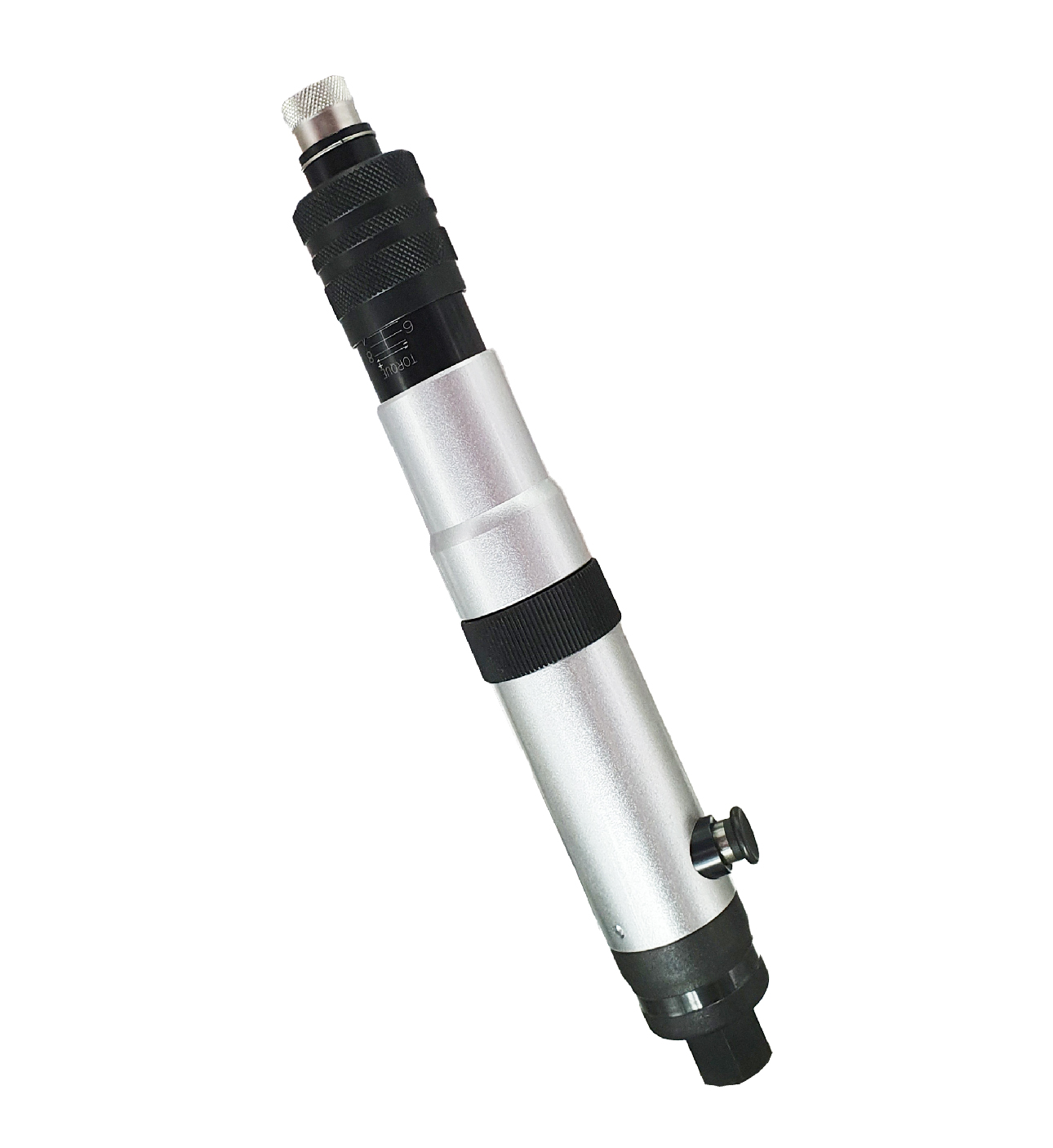

Torque Control Screwdriver-Button Overview
The Torque Control Screwdriver-Button is engineered for precision torque application in demanding industrial settings. Featuring an external torque adjustment mechanism, it enables operators to set the desired torque accurately. The tool automatically stops operation once the preset torque is reached, ensuring consistent fastening quality and reducing the risk of over-tightening.
Designed with durability and compact power in mind, this pneumatic screwdriver supports factory use with rear exhaust and compatibility with muffler hose connections to minimize noise during operation.
| Specification | Value |
|---|---|
| Free Speed | 1000 RPM |
| Air Consumption | 11.7 SCFM / 8.5 CFM / 14.43 m³/hr / 0.26 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 9.05 in / 229 mm |
| Weight | 0.67 kg / 1.48 lb |
| Exhaust | Rear |
| Air Hose Size | 3/16" in / 12.7 mm |
| Max Torque | 3.5-16 ft-lb / 0.4-1.8 Nm |
| Iron Hex | 1/4" / 6.35 mm |
| Item No. | 71880 |
|---|---|
| Free Speed / RPM | 1000 |
| Air Consumption / SCFM | 11.7 |
| Air Consumption / CFM | 8.5 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.05 |
| Overall Length / mm | 229 |
| Weight / lb | 1.48 |
| Weight / kg | 0.67 |
| Exhaust | Rear |
| Air Hose Size / inch | 3/16" |
| Air Hose Size / mm | 12.7 |
| Max Torque / ft-lb | 3.5-16 |
| Max Torque / Nm | 0.4-1.8 |
Key Features
- External torque adjustment for easy and precise control
- One-press start operation for efficiency
- Automatic air shutoff when preset torque is reached to prevent over-tightening
- High accuracy and stable torque delivery
- Option to connect muffler hose to reduce operational noise
Applications
Industrial Applications
Ideal for factory assembly lines and industrial maintenance, the Torque Control Screwdriver-Button ensures consistent fastening torque for pneumatic tool users requiring precision and durability in compact air screwdrivers.
