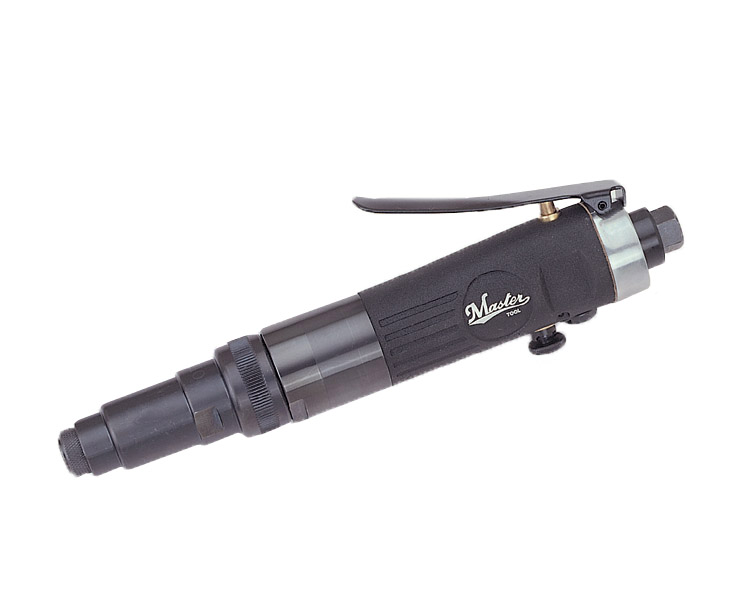

Internal Adjustable Torque Straight Screwdriver
The Internal Adjustable Torque Straight Screwdriver from the Reversible series delivers precision torque control with a cam-over torque limiting clutch that signals when the maximum torque is reached. Its reversible direction switch allows seamless forward and backward operation, enhancing efficiency in factory environments.
Engineered for durability and compact power, this pneumatic tool supports a torque range from 50 to 135 ft-lb, making it suitable for demanding industrial assembly lines. The tool features a rear exhaust and operates at 800 RPM with an air consumption of 2.79 CFM under 90 PSIA air pressure.
Its design includes a rotate-to-open mechanism for easy spring exchange, allowing quick adjustments to different torque ranges without compromising workflow.
| Item No. | 71510 |
|---|---|
| Free Speed / RPM | 800 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.21 |
| Overall Length / inch | 10.63 |
| Overall Length / mm | 270 |
| Weight / lb | 2.86 |
| Weight / kg | 1.3 |
| Exhaust | Rear |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.52 |
| Horsepower | 0.9 |
| kW | 0.68 |
Features
- Direction Switch: Pull up the switch to change between forward and backward rotation.
- Cam-over Torque Limiting Clutch: Signals when maximum torque is achieved to prevent over-tightening.
- Adjustable Torque Range: Easily exchange springs to set torque between 50 and 135 ft-lb.
- Compact and Durable: Designed for heavy industrial use with a robust construction.
- Rear Exhaust: Enhances operator comfort by directing exhaust away.
Applications
Applications
Ideal for factory assembly lines requiring precise torque control and reversible operation. The rotate-to-open feature allows quick torque adjustments by exchanging springs, supporting various fastening requirements in industrial manufacturing and maintenance.
