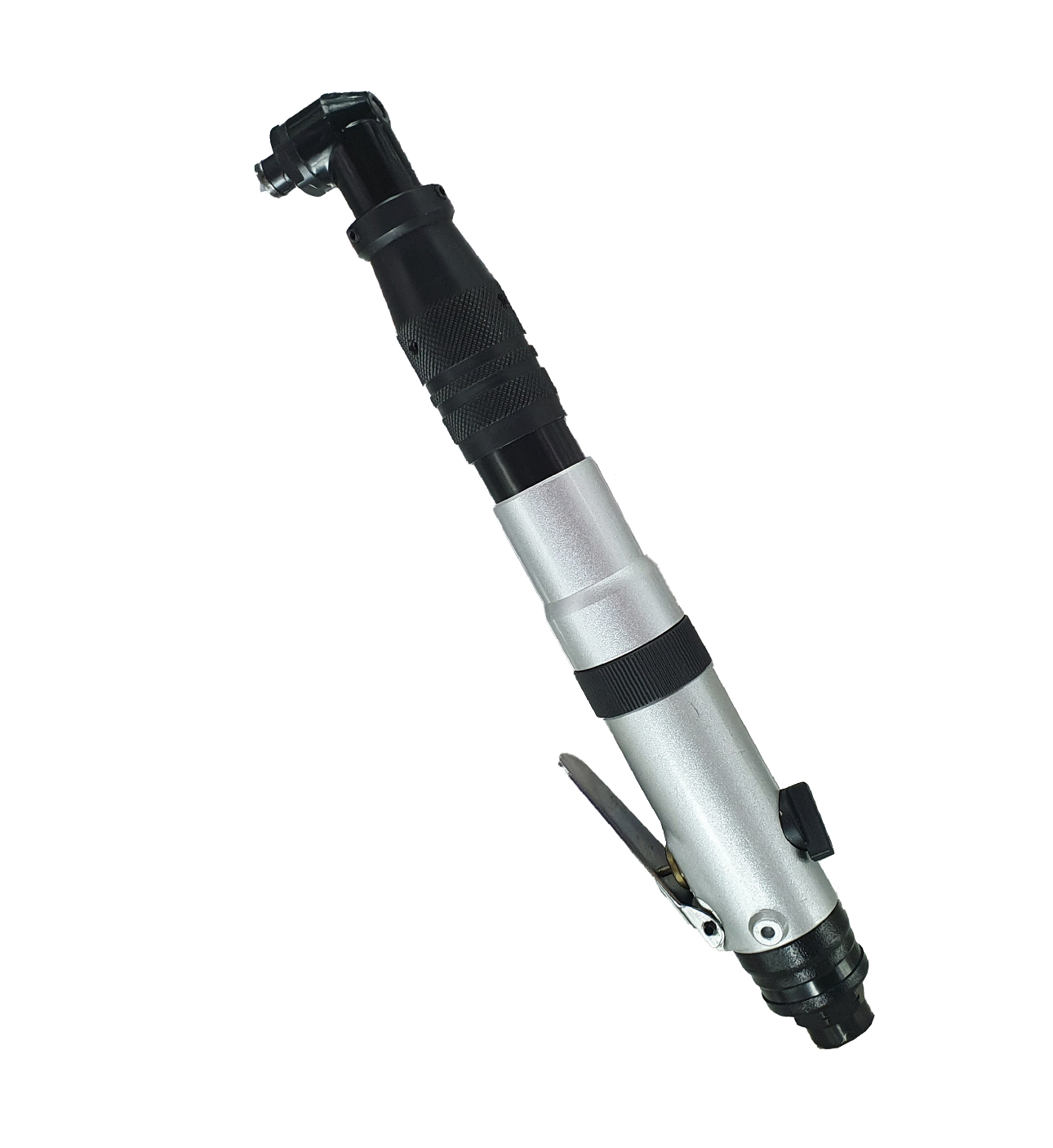

Torque Control Screwdriver Overview
The Torque Control Screwdriver is engineered for precision and durability in demanding industrial environments. It features a torque control valve that automatically stops air flow when the preset torque is achieved, preventing over-tightening and ensuring consistent results. The tool supports connection to a muffler hose to reduce operational noise, enhancing factory workplace conditions.
| Item No. | 71860 |
|---|---|
| Free Speed / RPM | 1000 |
| Air Consumption / SCFM | 11.7 |
| Air Consumption / CFM | 8.5 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 11.29 |
| Overall Length / mm | 286.7 |
| Weight / lb | 1.81 |
| Weight / kg | 0.82 |
| Exhaust | Rear |
| Air Hose Size / inch | 3/16" |
| Air Hose Size / mm | 12.7 |
| Max Torque / ft-lb | 7.9-18.5 |
| Max Torque / Nm | 0.9-2.1 |
Key Features
- High accuracy torque control with stable output
- Automatic air shutoff upon reaching set torque value
- Option to connect muffler hose for noise reduction
Applications
Industrial Applications
Designed for factory and assembly line use, this screwdriver is ideal for precision fastening tasks requiring consistent torque control. Its durability and compact design support continuous operation in heavy industrial environments.
