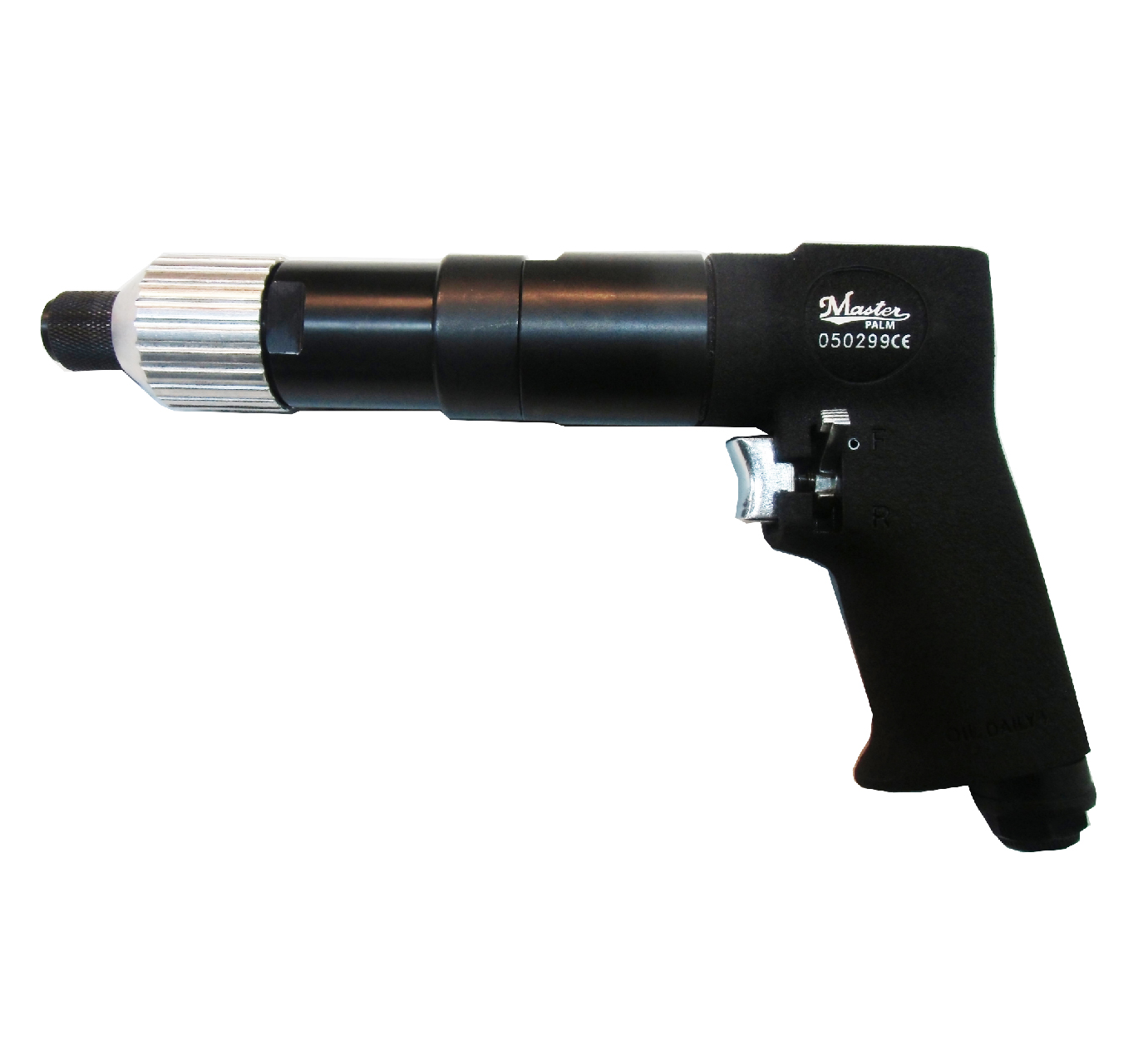

1/4"Ex. Adjustable Screw Gun Overview
This industrial-grade pneumatic screwdriver features an adjustable torque range, allowing operators to set the torque precisely for varied assembly tasks. Its ergonomic palm curve tail and side handle enhance push strength and operator comfort during extended use. The special pressure push design improves holding strength by enabling downward palm pressure during operation.
Engineered for factory environments, this tool supports efficient and durable fastening with a free speed of 1800 RPM and a torque range of 30 to 110 ft-lb (3.4 to 12.5 Nm). It operates at 90 PSIA (6.2 bar) air pressure with controlled air consumption, ensuring consistent performance in demanding industrial settings.
| Item No. | 71480 |
|---|---|
| Free Speed / RPM | 1800 |
| Air Consumption / SCFM | 19.1 |
| Air Consumption / CFM | 13.4 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2 |
| Overall Length / inch | 9.05 |
| Overall Length / mm | 230 |
| Weight / lb | 2.2 |
| Weight / kg | 1 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8" |
| Air Hose Size / mm | 9.5 |
| Horsepower | 0.5 |
| kW | 0.38 |
| Max Torque / ft-lb | 30-110 |
| Max Torque / Nm | 3.4-12.5 |
Key Features
- Adjustable torque switch for precise torque control
- Ergonomic palm curve tail design for enhanced push strength
- Side handle for improved grip and stability
- Special pressure push design to increase holding strength during operation
- Industrial-grade pneumatic construction for durability and reliability
- Comfort-focused design for long duration usage
Applications
Applications
Ideal for industrial assembly lines and factory use where precise torque control and durability are critical. Suitable for fastening tasks requiring adjustable torque settings and extended operator comfort in pneumatic tool applications.
