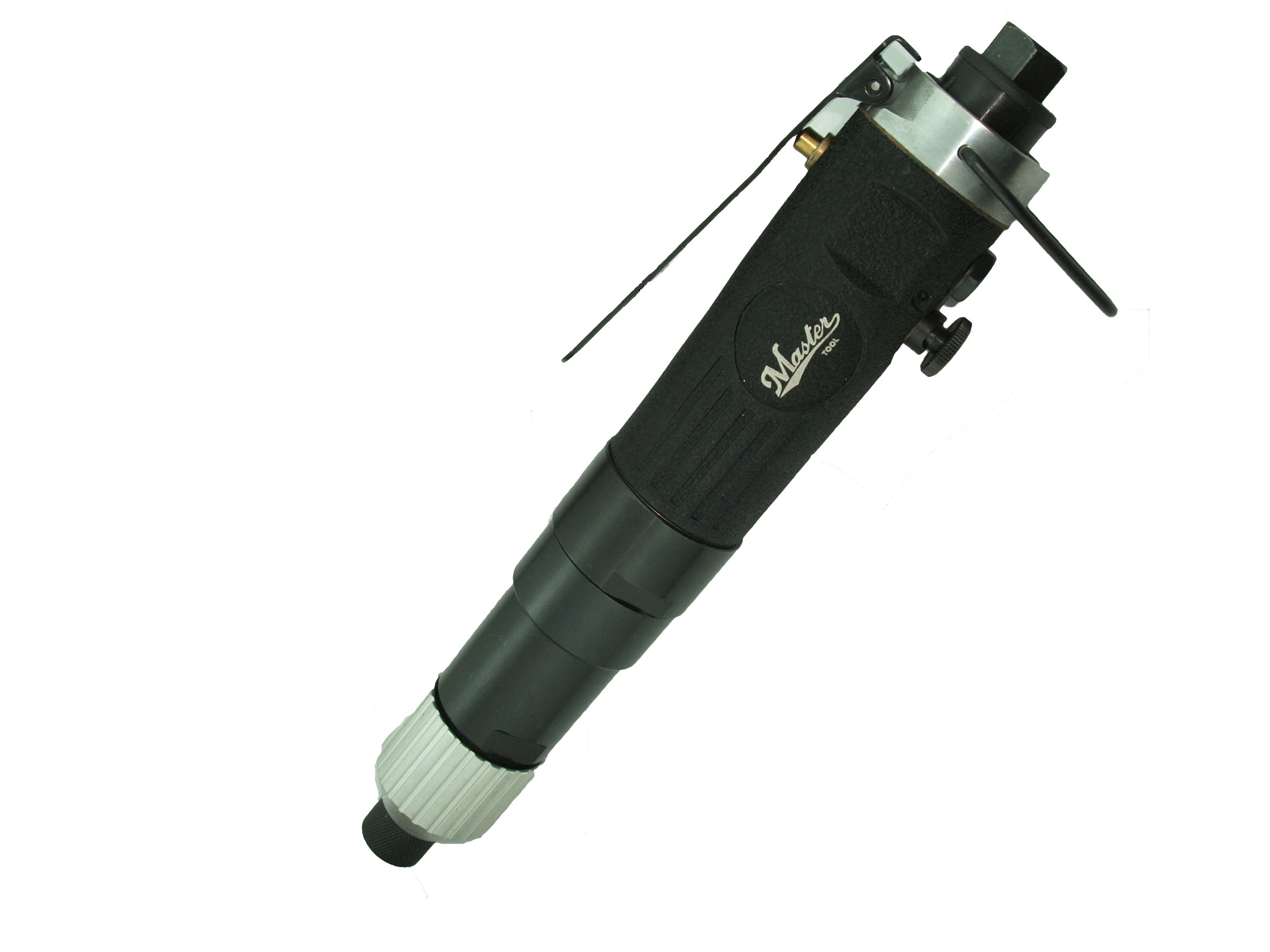

External Adjustable Torque Straight Screwdriver
This industrial-grade pneumatic screwdriver features an external torque switch allowing fast and precise torque adjustments. The reversible design includes a direction switch for forward and backward operation. A cam-over torque limiting clutch signals when the preset maximum torque is reached, ensuring consistent fastening performance.
| Item No. | 71470 |
|---|---|
| Free Speed / RPM | 800 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.21 |
| Angle Height / inch | 0 |
| Angle Height / mm | 0 |
| Overall Length / inch | 11.22 |
| Overall Length / mm | 285 |
| Weight / lb | 2.49 |
| Weight / kg | 1.13 |
| Exhaust | Rear |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.52 |
| Horsepower | 0.9 |
| kW | 0.68 |
Features
- External Torque Switch: Enables easy torque adjustment within the desired range.
- Reversible Operation: Direction switch allows quick change between forward and backward rotation.
- Cam-over Torque Limiting Clutch: Provides tactile feedback when maximum torque is achieved.
Applications
Applications
- Industrial assembly requiring precise torque control.
- Factory use where reversible fastening is needed.
- Maintenance tasks demanding consistent torque application.
