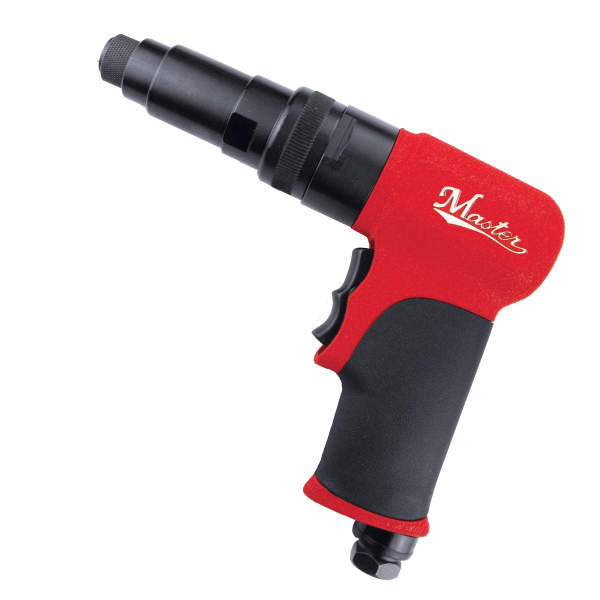

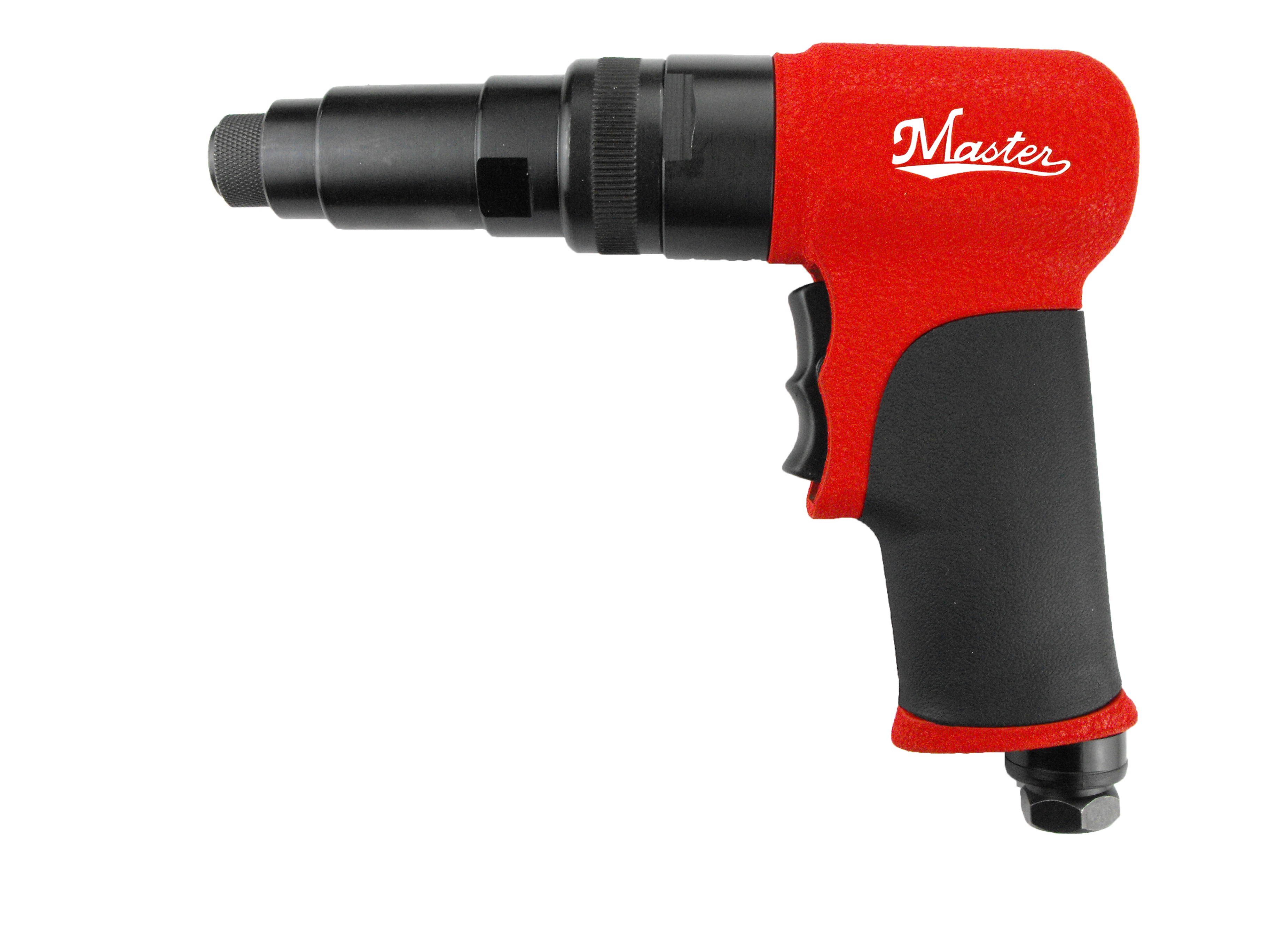

Internal Adjustable Torque Pistol Screwdriver
This reversible pneumatic screwdriver is engineered for precision and durability in industrial environments. It features an external torque switch for quick and accurate torque adjustments, enhancing operational efficiency. The rubber grip design improves handling resistance and user comfort during extended use. The pistol-style form factor provides optimal leverage and control.
Equipped with a forward-reverse switch and rear exhaust, this tool accepts 1/4" hex shank power bits, making it versatile for various assembly tasks. Its compact design supports challenging applications in automotive interiors, heavy vehicles, and electronics assembly lines.
| Item No. | 78520 |
|---|---|
| Free Speed / RPM | 1800 |
| Air Consumption / SCFM | 17 |
| Air Consumption / CFM | 2.635 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.21 |
| Overall Length / inch | 8.5 |
| Overall Length / mm | 216 |
| Weight / lb | 2.51 |
| Weight / kg | 1.14 |
| Exhaust | Side |
| Noise / dBA | 82 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.52 |
| Horsepower | 0.9 |
| kW | 0.68 |
Features
- External Torque Switch: Enables fast and easy torque adjustments within the desired range for consistent performance.
- Rubber Grip Design: Enhances grip resistance and operator comfort during prolonged use.
Applications
Applications
- Ergonomic Direction Trigger: Designed for fingertip control to facilitate easy operation and direction changes.
- Rotate to Open: Allows spring exchange to customize torque ranges for specific tasks.
- Ideal for demanding assembly work on car interiors, trucks, buses, off-road equipment, and electronic assembly lines.
- Accepts 1/4" hex shank power bits with forward-reverse switch and rear exhaust for efficient operation.
