Product Overview

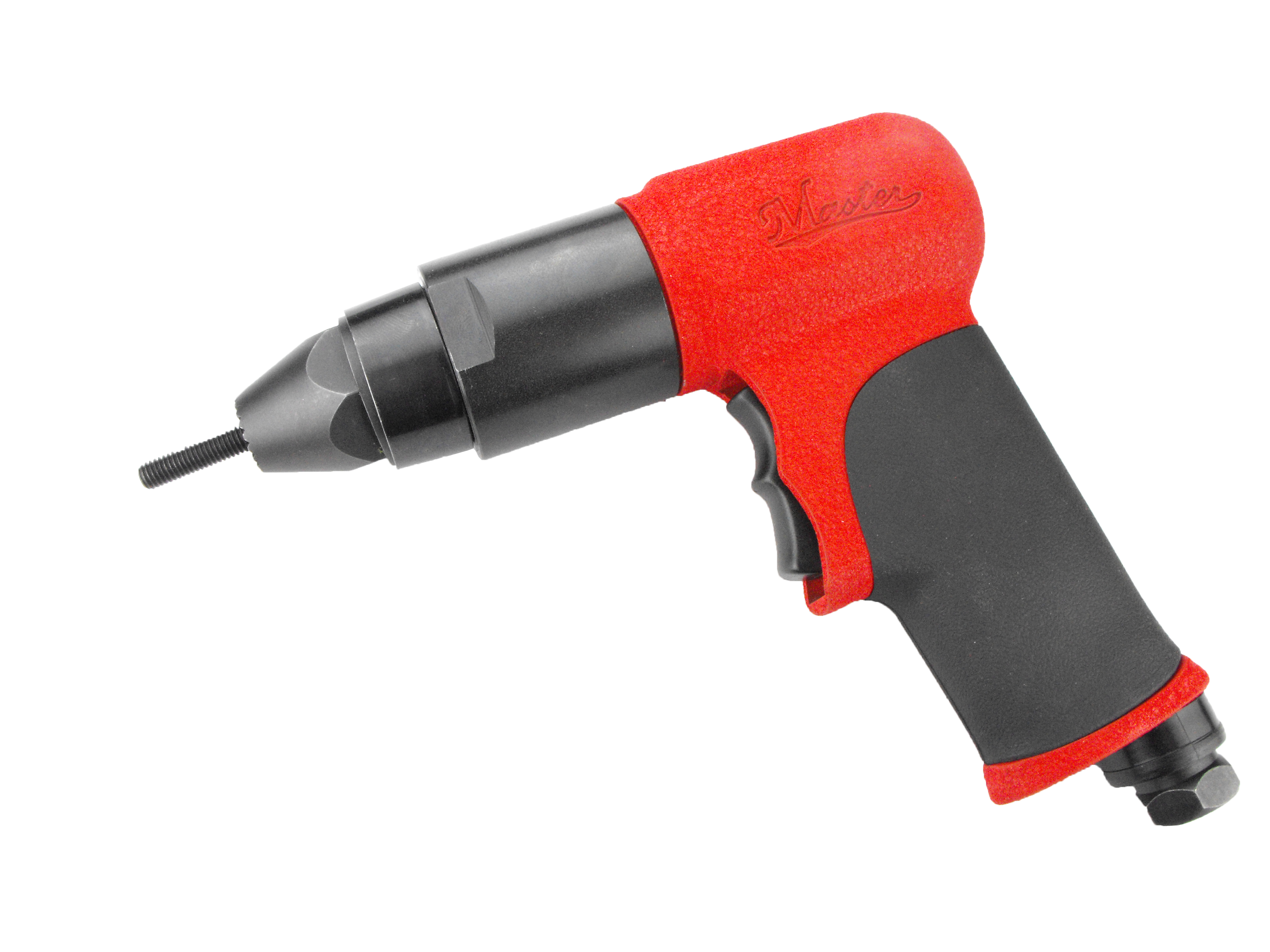

The M10 Pistol Grip Nut Pull Setter is engineered for industrial nut installation tasks, combining compact power with ergonomic design. It features a Palm Curve Tail to enhance operator control and a Direction Trigger Press for efficient switching between forward and reverse operations.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 650 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min / 6.63 m³/min |
| Air Pressure | 90 PSIA / 6.2 bar / 620.55 kPa |
| Overall Length | 216 mm (8.5 in) |
| Weight | 1.36 kg (2.99 lb) |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8 in (9.525 mm) |
| Horsepower | 0.9 HP |
| Power | 0.675 kW |
| Compatible Nut Sizes | Iron & Stainless Steel Round/Hex: M3 to M12 |
| Item No. | 78790 |
|---|---|
| Free Speed / RPM | 650 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 8.503937008 |
| Overall Length / mm | 216 |
| Weight / lb | 2.992 |
| Weight / kg | 1.36 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Palm Curve Tail Design: Specially shaped tail improves holding strength by allowing the operator to push down with the palm during use.
- Direction Trigger Press: Enables easy switching between reverse and forward directions for efficient operation.
Applications
Industrial Applications
Designed for factory and heavy industrial environments, the M10 Pistol Grip Nut Pull Setter is ideal for precise installation of rivet nuts across various metal types and sizes, supporting efficient assembly and maintenance workflows.
