Overview

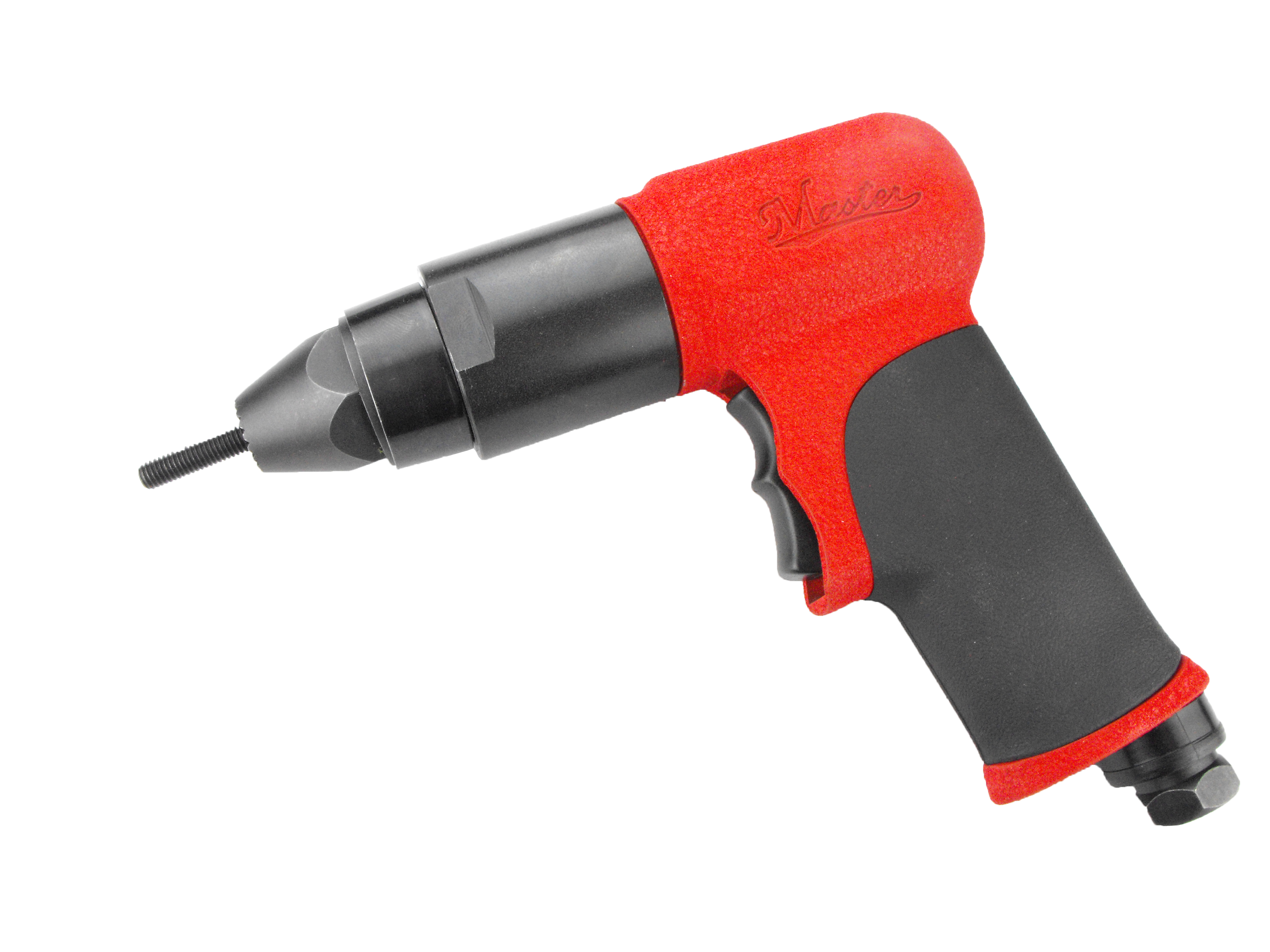

The M12 Pistol Grip Nut Pull Setter is engineered for precision nut installation in demanding industrial environments. Its compact design integrates a Palm Curve Tail to improve operator control and a Direction Trigger Press for seamless switching between forward and reverse operations.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 350 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 216 mm (8.5 in) |
| Weight | 1.36 kg (2.99 lb) |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8 in (9.5 mm) |
| Power | 0.675 kW / 0.9 HP |
| Compatible Nut Sizes | Iron & Stainless Steel, Round & Hex: M3 to M12 |
| Item No. | 78760 |
|---|---|
| Free Speed / RPM | 350 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 8.503937008 |
| Overall Length / mm | 216 |
| Weight / lb | 2.992 |
| Weight / kg | 1.36 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Palm Curve Tail Design: Special ergonomic curve improves holding strength by enabling the operator to push down with the palm during use.
- Direction Trigger Press: Allows easy switching between forward and reverse directions for efficient nut setting operations.
Applications
Applications
Designed for industrial nut installation, the M12 Pistol Grip Nut Pull Setter is suitable for fastening iron and stainless steel rivet nuts ranging from M3 to M12 in various factory and assembly line environments requiring durable pneumatic tools.
