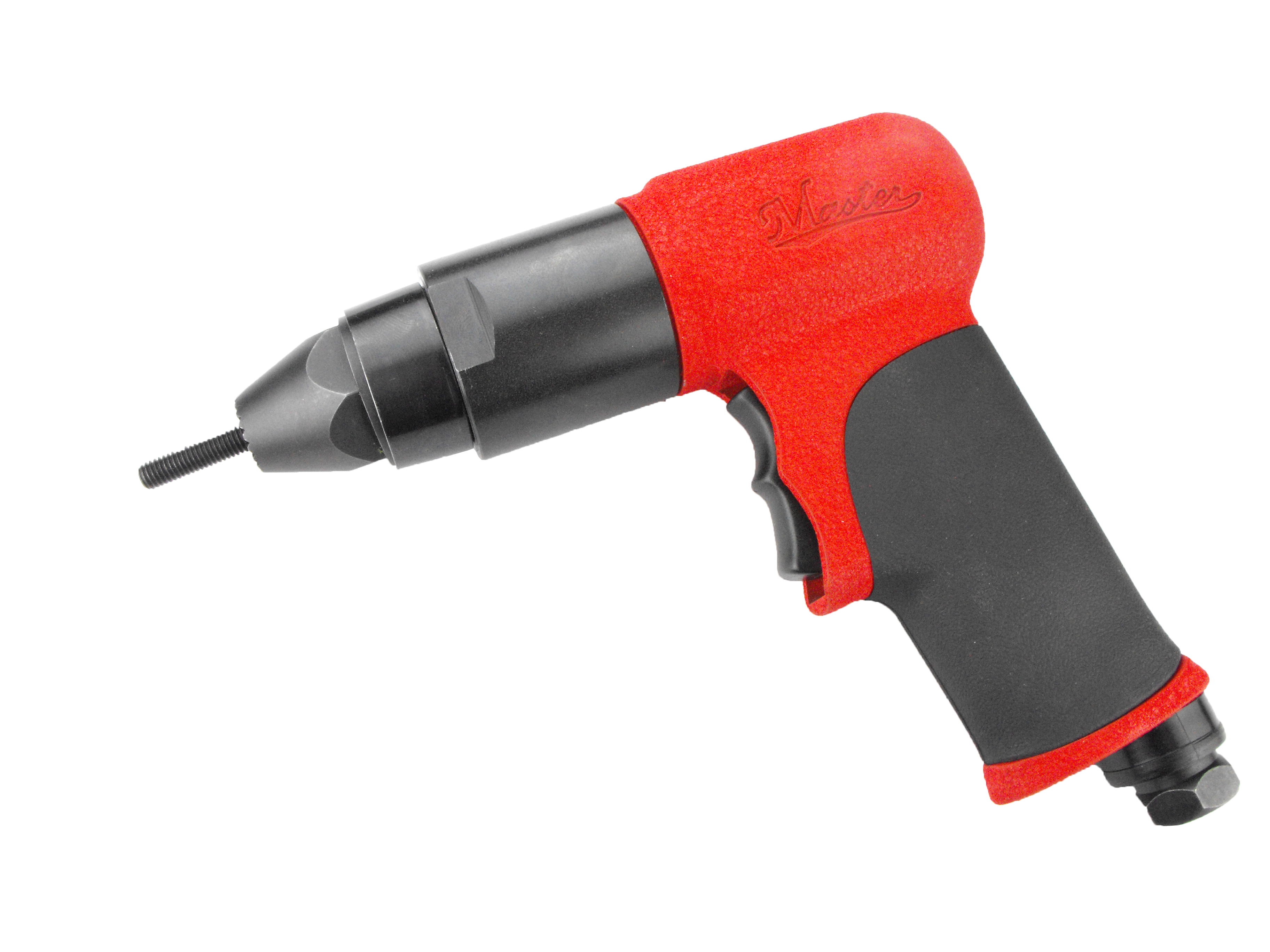

M12 Pistol Grip Nut Pull Setter Overview
The M12 Pistol Grip Nut Pull Setter is a precision-engineered pneumatic tool designed for efficient nut installation. Its compact pistol grip design ensures durability and ease of use in factory environments. The tool supports various nut sizes and is built for consistent performance in industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 650 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 90 PSIA / 6.2 bar / 620.55 kPa |
| Overall Length | 216 mm / 8.5 in |
| Weight | 1.36 kg / 2.99 lb |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8 in / 9.525 mm |
| Power | 0.9 HP / 0.675 kW |
| Compatible Nut Sizes | Iron & Stainless Steel Round and Hex: M3 to M12 |
| Item No. | 78750 |
|---|---|
| Free Speed / RPM | 650 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 8.503937008 |
| Overall Length / mm | 216 |
| Weight / lb | 2.992 |
| Weight / kg | 1.36 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Palm Curve Tail Design: Specially designed tail to improve holding strength by applying downward pressure with the palm during operation.
- Direction Trigger Press: Allows easy switching between reverse and forward directions for versatile nut installation.
Applications
Applications
Designed for industrial nut installation, the M12 Pistol Grip Nut Pull Setter is suitable for use with iron and stainless steel round and hex nuts ranging from M3 to M12. Its ergonomic design and directional control make it ideal for factory assembly lines and maintenance operations requiring reliable pneumatic nut setting.
