Overview

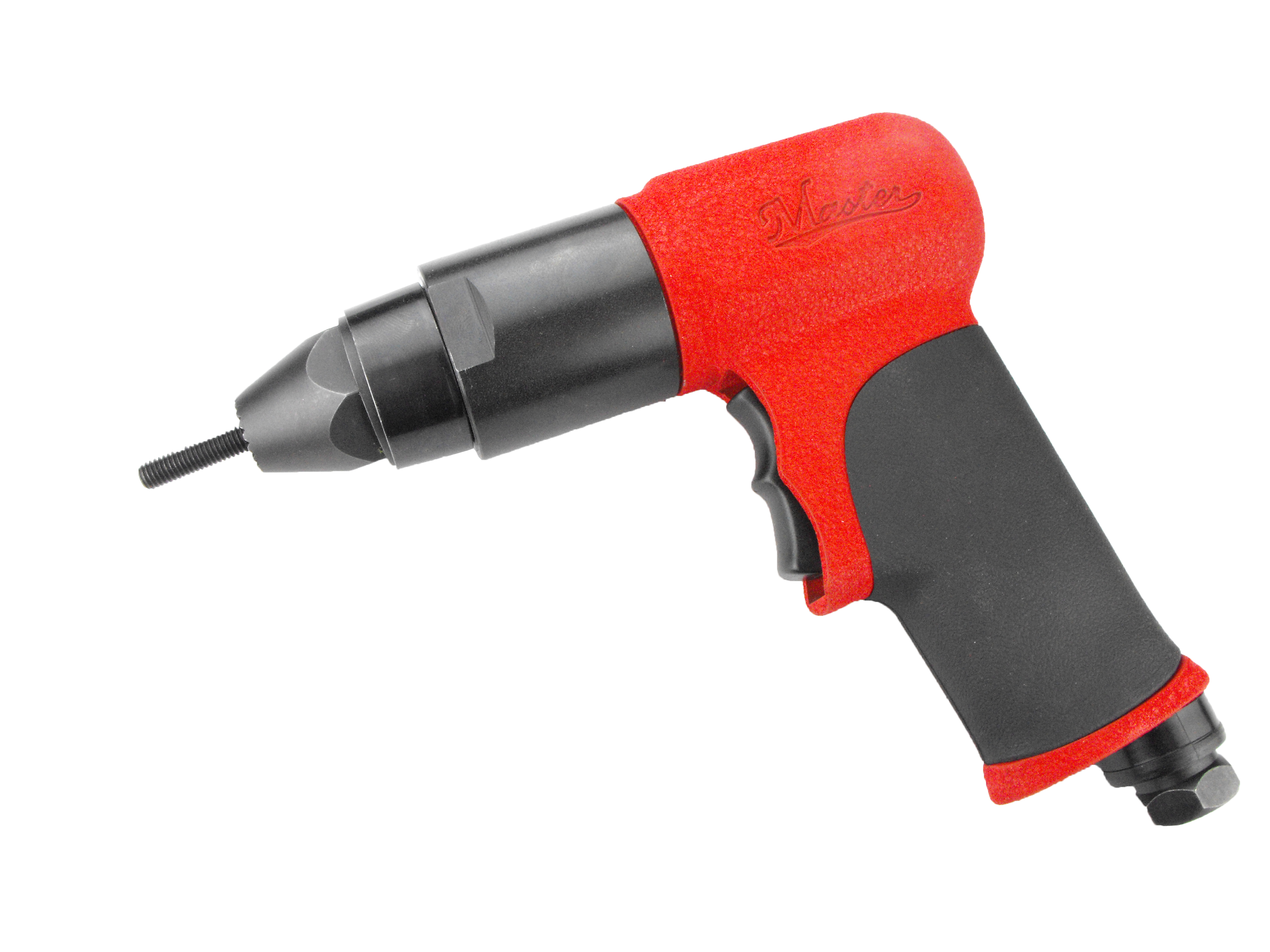

The M8 Pistol Grip Nut Pull Setter is engineered for industrial nut installation tasks requiring compact power and durability. Its ergonomic Palm Curve Tail Design improves operator control by allowing the tool to be firmly pressed down with the palm during use. The Direction Trigger Press enables quick switching between forward and reverse directions, optimizing workflow efficiency.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 650 RPM |
| Air Consumption | 2.79 CFM / 79.12 L/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 210 mm (8.27 in) |
| Weight | 1.36 kg (2.99 lb) |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8 in (9.525 mm) |
| Power | 0.675 kW / 0.9 HP |
| Item No. | 78780 |
|---|---|
| Free Speed / RPM | 650 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 8.267716535 |
| Overall Length / mm | 210 |
| Weight / lb | 2.992 |
| Weight / kg | 1.36 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Palm Curve Tail Design: Ergonomically shaped tail to enhance holding strength by allowing the operator to push down with the palm during operation.
- Direction Trigger Press: Intuitive trigger design enables easy switching between forward and reverse directions for efficient nut setting.
Applications
Applications
Designed for industrial nut installation, the M8 Pistol Grip Nut Pull Setter is suitable for fastening iron and stainless steel nuts in various sizes including M3 to M12. Its compact and durable design supports factory use in assembly lines and maintenance operations requiring reliable pneumatic nut setting.
