Product Overview

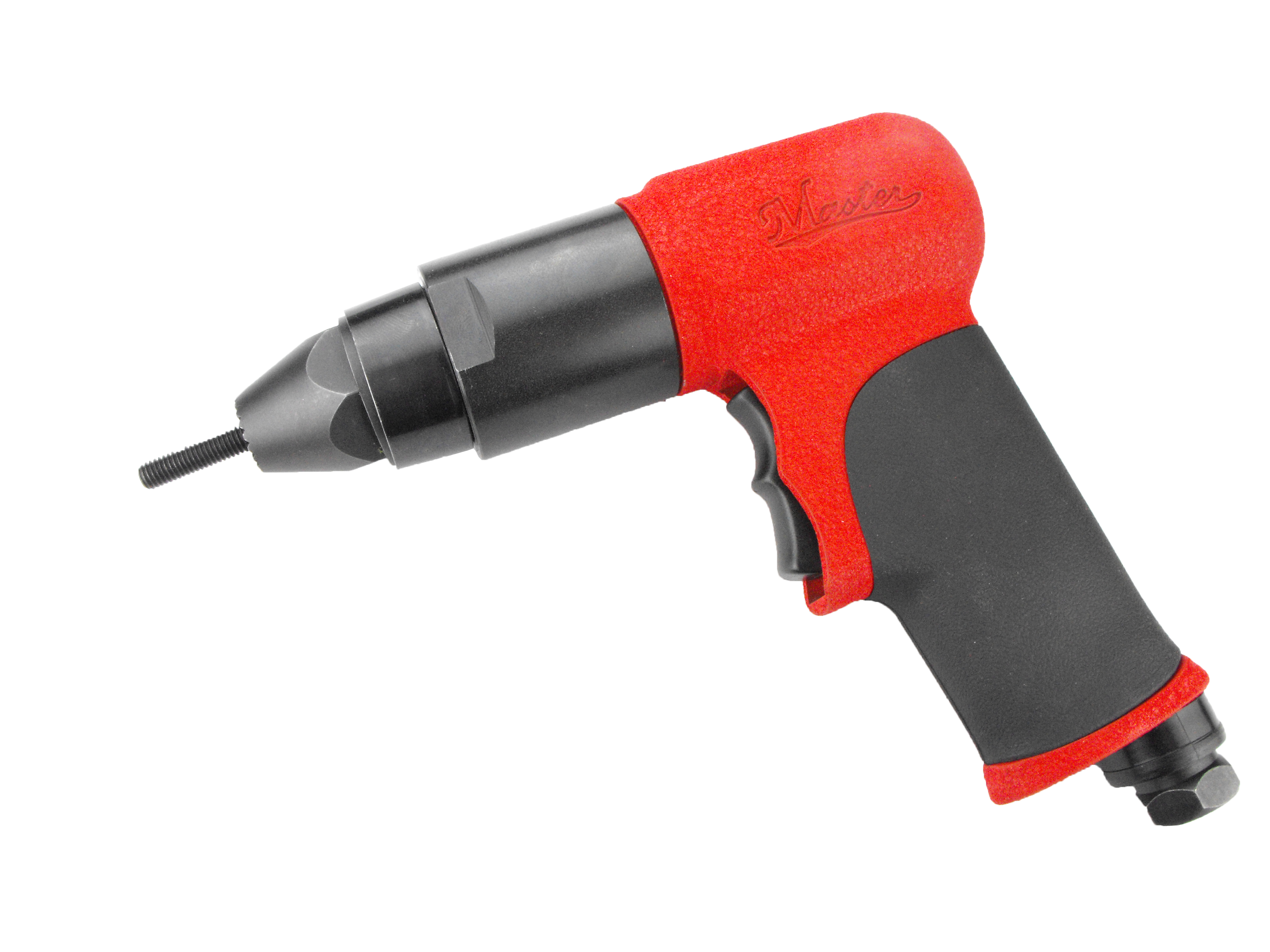

The M5 Pistol Grip Nut Pull Setter (Rivet Nut Setter) is engineered for precision nut installation in industrial settings. Its ergonomic Palm Curve Tail Design improves operator control by enabling firm palm pressure during use. The Direction Trigger Press allows quick and reliable switching between forward and reverse functions, enhancing operational efficiency.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 1600 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 200 mm (7.87 in) |
| Weight | 1.15 kg (2.53 lb) |
| Exhaust | Rear |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8 in (9.5 mm) |
| Power | 0.9 HP / 0.675 kW |
| Compatible Nut Sizes | Iron Round M3, M4, M5, M6; Iron Hex M3, M4, M5, M6; Stainless Round M3, M4, M5, M6; Stainless Hex M3, M4 |
| Item No. | 78720 |
|---|---|
| Free Speed / RPM | 1600 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 7.874015748 |
| Overall Length / mm | 200 |
| Weight / lb | 2.53 |
| Weight / kg | 1.15 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Palm Curve Tail Design: Specially contoured tail to improve holding strength by applying palm pressure during operation.
- Direction Trigger Press: Intuitive trigger mechanism allowing easy switching between forward and reverse directions for versatile use.
Applications
Applications
Designed for industrial nut installation, the M5 Pistol Grip Nut Pull Setter is ideal for factory use where precision and durability are critical. Its ergonomic design supports extended operation and reliable performance in demanding manufacturing environments.
