Overview

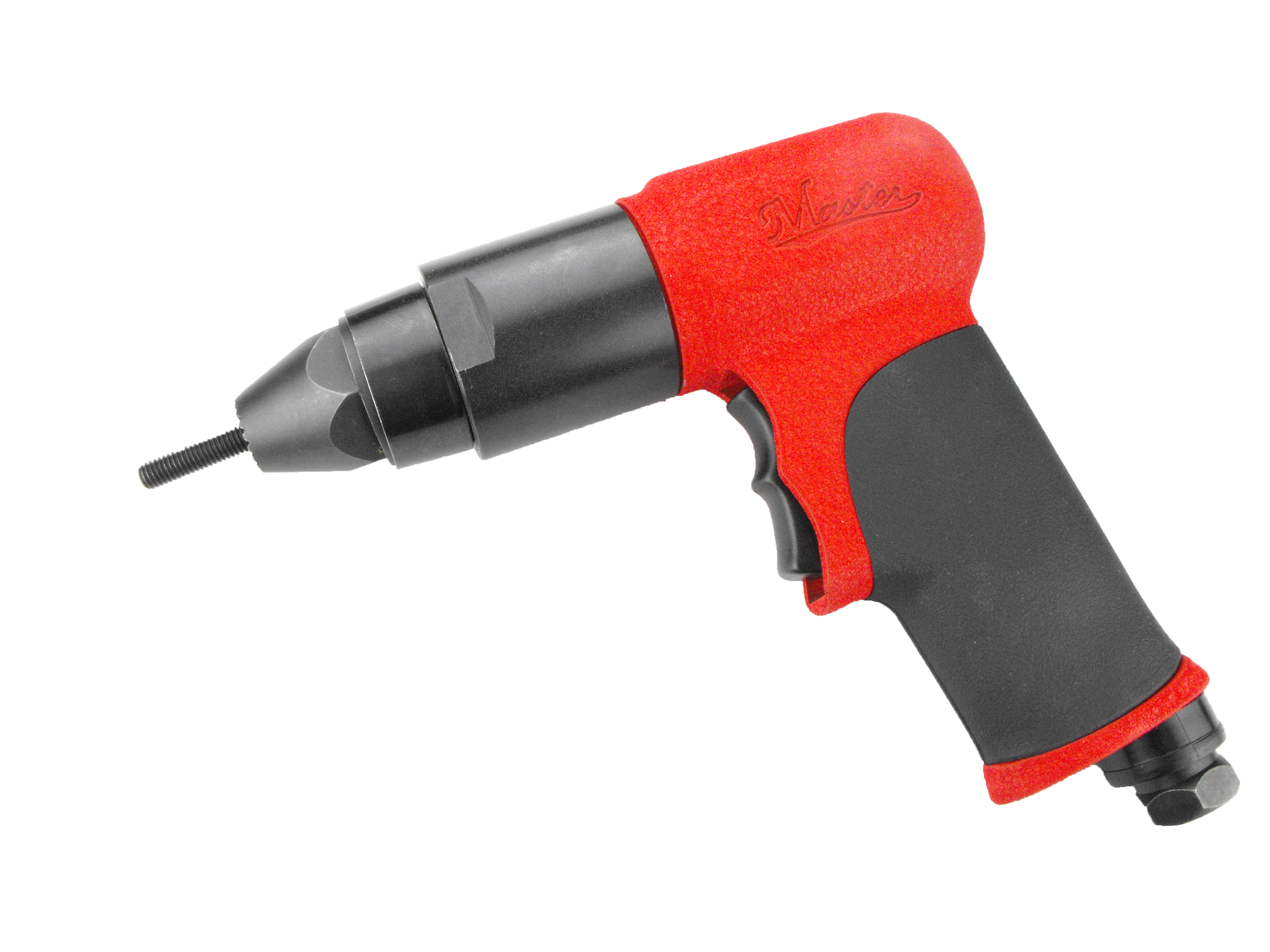

The M6 Pistol Grip Nut Pull Setter is engineered for industrial nut installation applications, combining compact power with ergonomic design. Its Palm Curve Tail enhances operator control by improving holding strength during use, while the Direction Trigger Press allows quick switching between forward and reverse operations.
Technical Specifications
| Specification | Value |
|---|---|
| Free Speed | 1600 RPM |
| Air Consumption | 18 SCFM / 2.79 CFM / 397.6 L/min |
| Air Pressure | 90 PSIA / 6.2 bar |
| Overall Length | 200 mm / 7.87 in |
| Weight | 1.15 kg / 2.53 lb |
| Noise Level | 83 dBA |
| Air Hose Size | 3/8 in / 9.5 mm |
| Power | 0.675 kW / 0.9 HP |
| Compatible Nut Sizes | Iron Round M3-M6, Iron Hex M3-M6, Stainless Round M3-M6, Stainless Hex M3-M6 |
| Item No. | 78730 |
|---|---|
| Free Speed / RPM | 1600 |
| Air Consumption / SCFM | 18 |
| Air Consumption / CFM | 2.79 |
| Air Pressure / PSI | 90 |
| Air Pressure / Bar | 6.2055 |
| Overall Length / inch | 7.874015748 |
| Overall Length / mm | 200 |
| Weight / lb | 2.53 |
| Weight / kg | 1.15 |
| Exhaust | Rear |
| Noise / dBA | 83 |
| Air Hose Size / inch | 3/8 |
| Air Hose Size / mm | 9.525 |
| Horsepower | 0.9 |
| kW | 0.675 |
Key Features
- Palm Curve Tail Design: Specially shaped tail to improve holding strength by applying downward palm pressure during operation.
- Direction Trigger Press: Intuitive trigger mechanism enabling easy switching between forward and reverse directions for efficient nut setting.
Applications
Industrial Applications
Designed for heavy-duty factory use, the M6 Pistol Grip Nut Pull Setter is ideal for precise installation of rivet nuts in metal fabrication, automotive assembly, and industrial equipment manufacturing. Its ergonomic design supports prolonged use in demanding production environments.
